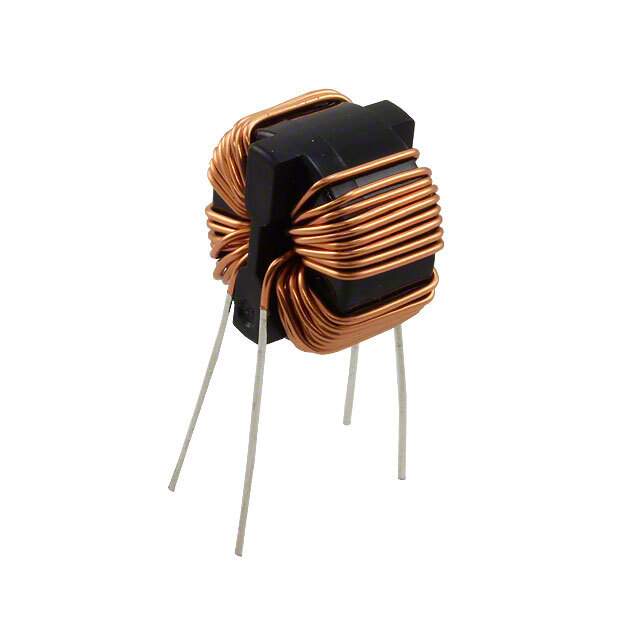

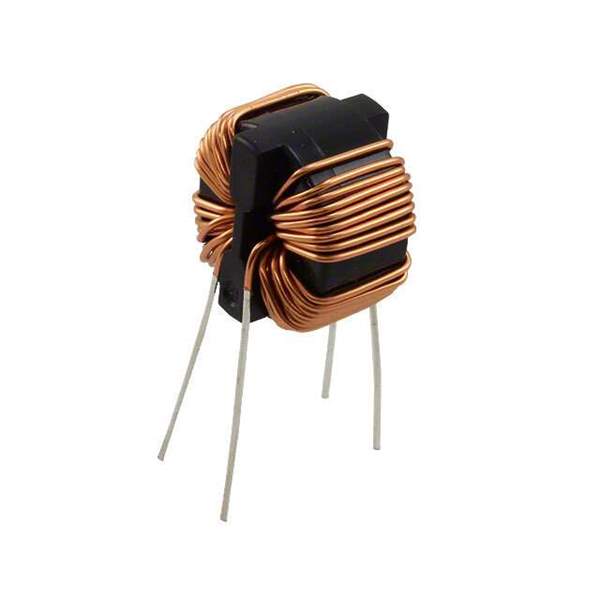

SCF-03-650 Real Image
Same model may have multiple batches, images only for reference.

SCF-03-650

Part No SCF-03-650
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6.5 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.591" L x 0.472" W (15.00mm x 12.00mm)
Height (Max) 0.591" (15.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SCF-03
Other Names 399-10777,UALSCF03650000
Standard Package 1,300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277034-SCF-03-650
Ultra Librarian 3D Model Ultra Librarian SCF-03-650 CAD Model

Description

The SC series common mode choke is a power line filter type component with a maximum current rating of 3A and a voltage rating of 250V AC and DC.

  • Filter Type: Power Line
  • Maximum Current Rating: 3A
  • Voltage Rating: 250V AC
  • Voltage Rating: 250V DC
  • Number of Lines: 2
  • Inductance: 6.5 mH @ 10 kHz frequency
  • DC Resistance (DCR): 70mOhm
  • Package: Bulk
  • Height: 0.591" (15.00mm)
  • Mounting Type: Through-hole
  • Package/Case: Vertical, no base, and 4 PC pin
  • Temperature Range: -25°C ~ 120°C
