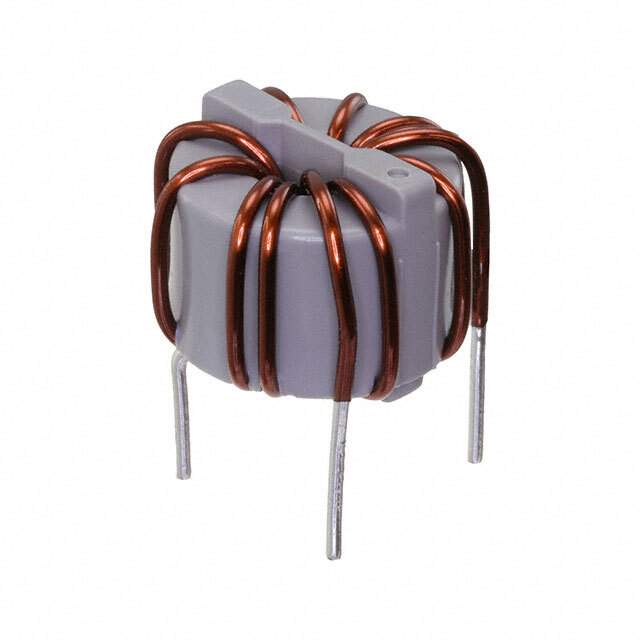

SC-10-D020H Real Image
Same model may have multiple batches, images only for reference.

SC-10-D020H

Part No SC-10-D020H
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 20 µH @ 100 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 6.5mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.945" Dia (24.00mm)
Height (Max) 0.787" (20.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-10
Other Names UALSC10D020H00,399-SC-10-D020H
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276982-SC-10-D020H
Ultra Librarian 3D Model Ultra Librarian SC-10-D020H CAD Model

Description

The KEMET SC-10-D020H is a common mode choke filter for power lines.

  • Lines: Two lines
  • Inductance: 20 µH @ 100 kHz
  • Voltage Rating: 250V AC and 250V DC
  • Current Rating: 10A
  • DC Resistance: 6.5mOhm
  • Mounting Type: Through-hole
  • Packaging: Tray
  • Height: 0.787 inches
  • Win Source Part Number: 1276982-SC-10-D020H
