Same model may have multiple batches, images only for reference.

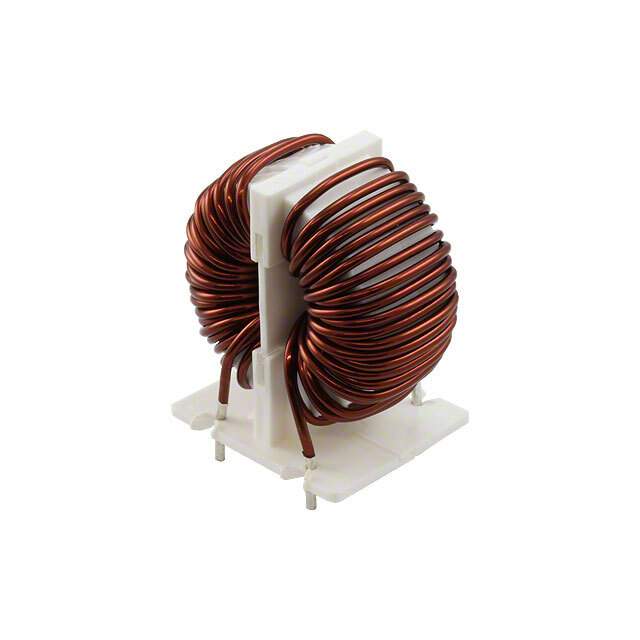

SC-10-20J Real Image
Same model may have multiple batches, images only for reference.

SC-10-20J

Part No SC-10-20J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 100 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 22mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.654" L x 1.142" W (42.00mm x 29.00mm)
Height (Max) 1.732" (44.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-10
Other Names UALSC1020J0000,399-10656
Standard Package 160
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277069-SC-10-20J
Ultra Librarian 3D Model Ultra Librarian SC-10-20J CAD Model

Description

The SC-10-20J is a power line common mode choke from KEMET.

  • Voltage Rating: 250V AC and 250V DC
  • Maximum Current Rating: 10A
  • Standard Package: 160
  • Height: 1.732 inches
  • Lines: 2
  • Inductance: 2 mH @ 100 kHz
  • DC Resistance: 22mOhm
  • Mounting: Through a hole
  • Package: Vertical, 4 PC pin
  • Temperature Range: -25°C to 105°C
  • Dimension: 1.654 inches L x 1.142 inches W
  • ECCN: EAR99 compliant
  • REACH: REACH unaffected
  • HTSUS: 8504.31
