Same model may have multiple batches, images only for reference.

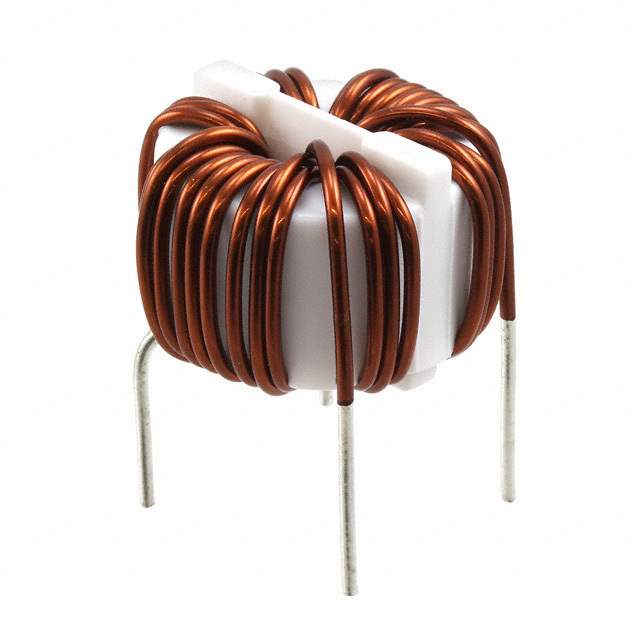

SC-10-100 Real Image
Same model may have multiple batches, images only for reference.

SC-10-100

Part No SC-10-100
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 1MH 10A 2LN TH / 1 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 10A DCR 20mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 20mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.339" Dia (34.00mm)
Height (Max) 0.945" (24.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Other Names UALSC101000000,399-10614
Standard Package 200
Win Source Part Number 1021628-SC-10-100
Ultra Librarian 3D Model Ultra Librarian SC-10-100 CAD Model

Description

The SC Common Mode Choke is a power line filter that is ideal for use in a wide range of electronic devices.

  • Voltage Rating: 250V AC and DC
  • Current Rating: 10A
  • Filter Type: Power Line
  • Lines: Two
  • Height: 0.945" (24.00mm)
  • Diameter: 1.339" (34.00mm)
  • Mounting Type: Through-Hole
  • Package: Horizontal, No Base, 4 PC Pin
