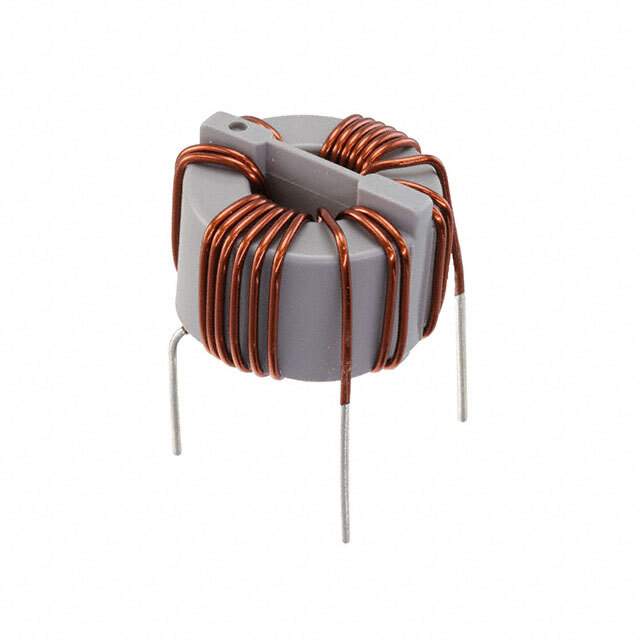

SC-08-D060 Real Image
Same model may have multiple batches, images only for reference.

SC-08-D060

Part No SC-08-D060
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 60 µH @ 100 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 30mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.339" Dia (34.00mm)
Height (Max) 0.906" (23.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-08
Other Names 399-SC-08-D060
Standard Package 50
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276944-SC-08-D060
Ultra Librarian 3D Model Ultra Librarian SC-08-D060 CAD Model

Description

The Kemet SC-08-D060 common mode choke is a reliable and high-performance component that is perfect for a wide range of electronic applications.

  • Voltage Rating: 250V
  • Current Rating: 8A
  • Temperature Range: 25°C to 105°C
  • Package Type: Through-hole
  • Height: 0.906" (23.00mm)
  • Filter Type: Power line
  • Inductance: 60 µH @ 100 kHz
  • DC Resistance (DCR): 30mOhm
