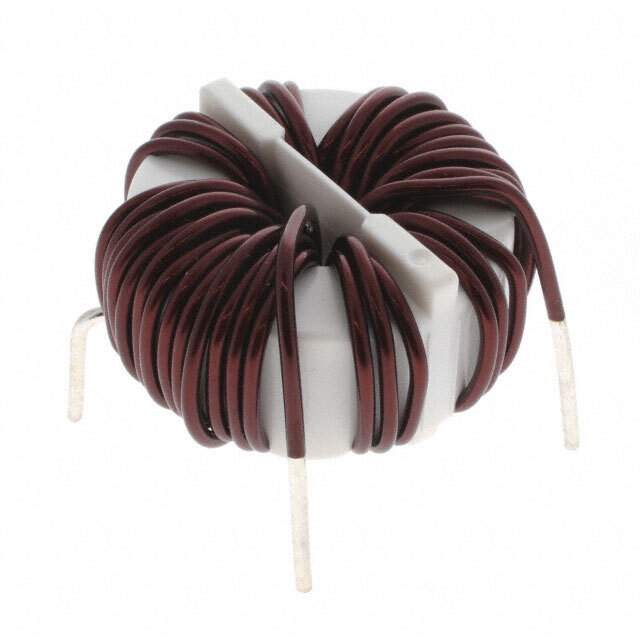

SC-07-E300A Real Image
Same model may have multiple batches, images only for reference.

SC-07-E300A

Part No SC-07-E300A
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 100 kHz
Current Rating (Max) 7A
DC Resistance (DCR) (Max) 45mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" Dia (34.00mm)
Height (Max) 0.906" (23.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-07
Other Names 399-SC-07-E300A
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277049-SC-07-E300A
Ultra Librarian 3D Model Ultra Librarian SC-07-E300A CAD Model

Description

The SC-07-E300A is a common mode choke filter manufactured by KEMET. The SC-07-E300A is a must-have component for any electronic device manufacturer that requires a high-quality common mode choke filter to ensure that their products are of the highest quality.

  • Voltage Rating: 250V AC and DC
  • Current Rating: 7A
  • Filter Type: Power Line
  • Height: 0.906 inches
  • Diameter: 1.339 inches
  • Inductance: 3 mH @ 100 kHz
  • DC Resistance: 45mOhm
  • Mounting Type: Through-hole
  • Package: Horizontal, no base, 4 PC pin
