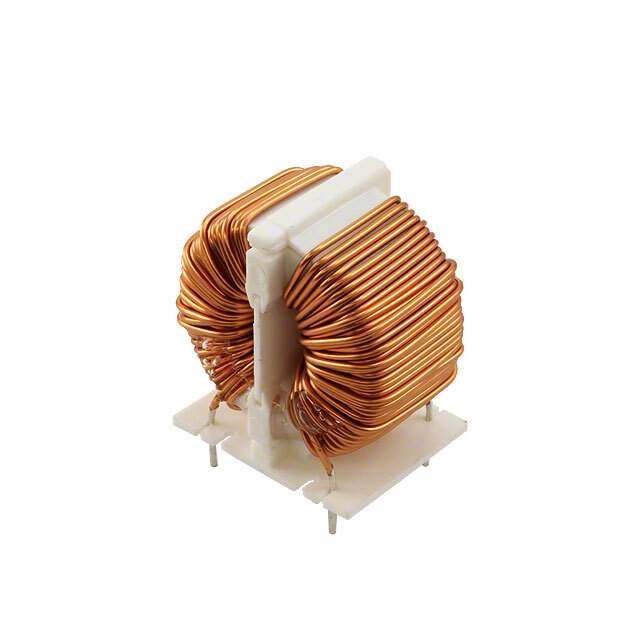

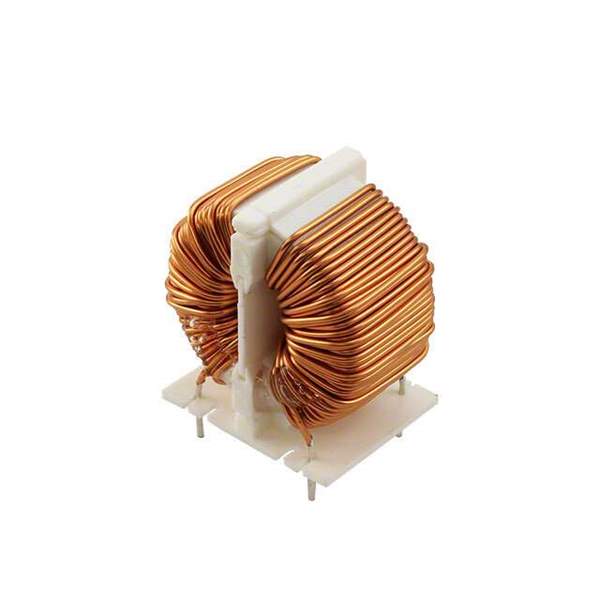

SC-05-80J Real Image
Same model may have multiple batches, images only for reference.

SC-05-80J

Part No SC-05-80J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 8 mH @ 100 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 90mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" L x 0.906" W (34.00mm x 23.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-05
Other Names 399-10654,UALSC0580J0000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277025-SC-05-80J
Ultra Librarian 3D Model Ultra Librarian SC-05-80J CAD Model

Description

The Kemet SC-05-80J is a common mode choke filter designed for use in power line applications.

  • Maximum Voltage Rating: 250V AC and 250V DC
  • Maximum Current Rating: 4A
  • Lines: Two
  • Inductance: 8mH @ 100kHz
  • DC Resistance (DCR): 90mOhm
  • Mounting Type: Through hole
  • Package: Vertical, with four PC pins
  • Temperature Range: -25°C to 120°C
  • Dimensions: 1.339" L x 0.906" W (34.00mm x 23.00mm)
  • RoHS Compliant: Yes
  • ECCN: EAR99
