Same model may have multiple batches, images only for reference.

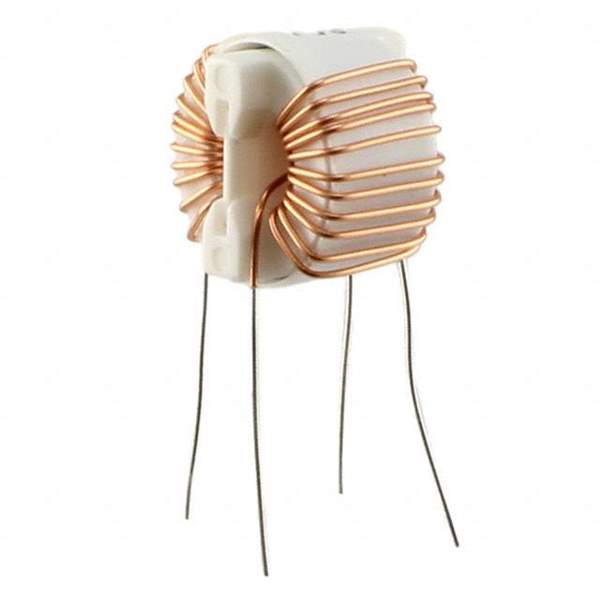

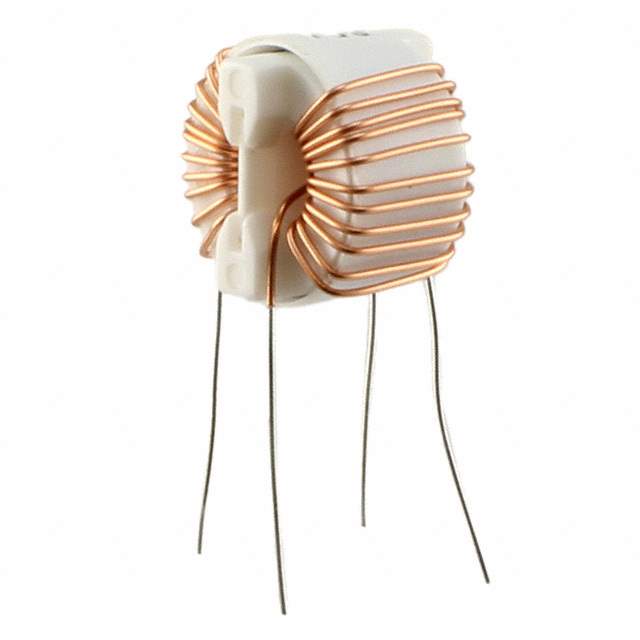

SC-01-06G Real Image
Same model may have multiple batches, images only for reference.

SC-01-06G

Part No SC-01-06G
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 600 µH @ 100 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 60mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.689" Dia x 0.551" W (17.50mm x 14.00mm)
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-01
Other Names UALSC0106G0000,399-10628
Standard Package 1,300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277033-SC-01-06G
Ultra Librarian 3D Model Ultra Librarian SC-01-06G CAD Model

Description

The Kemet Common Mode Choke 1277033-SC-01-06G is a power line filter that has a voltage rating of 250V AC and 250V DC. It is a reliable and high-quality component that can be used in a variety of electronic devices. Kemet

  • Voltage Rating: 250V AC
  • Voltage Rating: 250V DC
  • Maximum Current: 1A
  • Standard Package: 1,300
  • Height: 0.689 inches
  • Diameter: 0.689 inches
  • Inductance at Frequency: 600 µH @ 100 kHz
  • DC Resistance (DCR): 60mOhm
  • Mounting Type: Through-hole
  • Package: Vertical, no base, 4 PC pin
  • Temperature Range: -25°C to 105°C
  • Dimension: 0.689 inches Dia x 0.551 inches W
