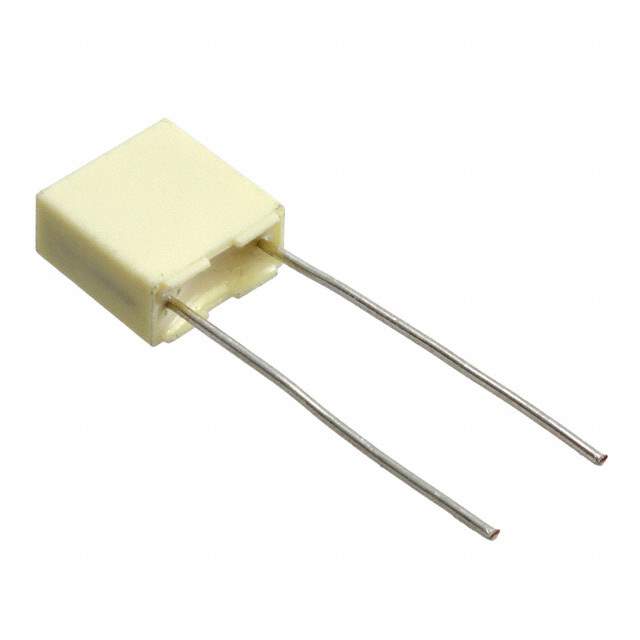

Same model may have multiple batches, images only for reference.

R82EC3100AA70J

Name: R82EC3100AA70J
Brand: Kemet
SKU: 1018314
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	R82EC3100AA70J
Manufacturer	Kemet
Catalog	Film Capacitors
Description	CAP FILM 0.1UF 5% 100VDC RADIAL / 0.1 µF Film Capacitor 63V 100V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Film Capacitors
Mfr	KEMET
Series	R82
Package	Bulk
Capacitance	0.1 µF
Tolerance	±5%
Voltage Rating - AC	63V
Voltage Rating - DC	100V
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Dimension	0.283" L x 0.098" W (7.20mm x 2.50mm)
Height - Seated (Max)	0.260" (6.60mm)
Termination	PC Pins
Lead Spacing	0.197" (5.00mm)
Applications	Automotive
Ratings	AEC-Q200
Base Product Number	R82EC
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.25.0010
Other Names	82EC3100AA70J,399-5861
Standard Package	3,000
Win Source Part Number	1018314-R82EC3100AA70J
Ultra Librarian 3D Model	Ultra Librarian R82EC3100AA70J CAD Model

Description

The KEMET R82EC3100AA70J is a film capacitor that is designed to provide high performance.

Series: R82 series
Features: No specific features
Termination: PC pins
Packaging: Bulk
Voltage Rating - AC: 63V
Voltage Rating - DC: 100V
AEC-Q200: Rated AEC-Q200
Automotive Applications: Used in various automotive applications
Height: 0.260" (6.60mm)
Mounting Type: Through-hole
Capacitance: 0.1 µF
Tolerance: ±5%
Lead Spacing: 0.197" (5.00mm)
Dielectric Material: Polyester, polyethylene terephthalate (PET), metallized - stacked
Package: Radial
Temperature Range: -55°C to 105°C
Dimension: 0.283" L x 0.098" W (7.20mm x 2.50mm)
ECCN: EAR99
HTSUS: 8532.25.0010
