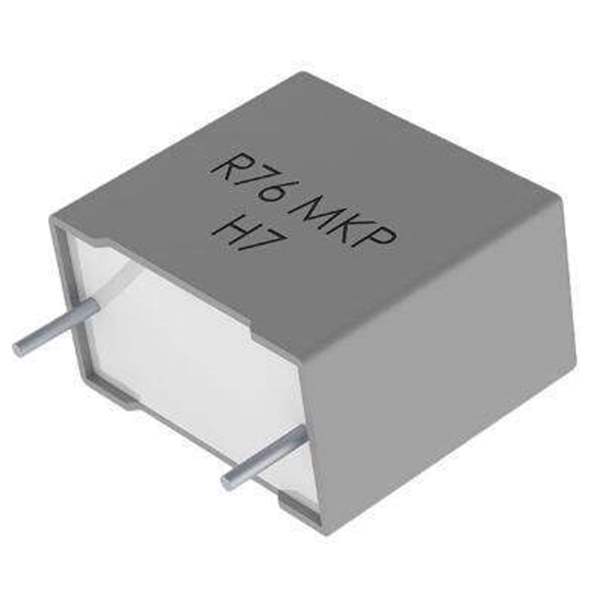

R76UR32204030JKEMET
Same model may have multiple batches, images only for reference.

R76UR32204030J

Part No R76UR32204030J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.22UF 5% 2KVDC RADIAL
Datasheet
R76UR32204030J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KEMET
Category Capacitors Film Capacitors
Packaging Tray
Part Status Active
Capacitance 0.22 µF
Tolerance ±5%
Voltage Rating - AC 700V
Voltage Rating - DC 2000V (2kV)
Operating Temperature -55°C ~ 110°C
Mounting Type Through Hole
Size / Dimension 1.260" L x 0.866" W (32.00mm x 22.00mm)
Height - Seated (Max) 1.461" (37.10mm)
Win Source Part Number WS1306611-R76UR32204030J
Ultra Librarian 3D Model Ultra Librarian R76UR32204030J CAD Model

Description

Benefits
• Voltage range: 250 – 2,000 VDC
• Capacitance range: 100 pF – 12 µF
• Lead Spacing: 7.5 mm – 37.5 mm
• Capacitance tolerance: ±2.5%, ±5%, ±10%
• Climatic category: 55/110/56 IEC 60068–1
• Operating temperature range of −55°C to +110°C
• RoHS compliance and lead-free terminations
• Tape & Reel packaging in accordance with IEC 60286–2
• Self-healing
• Automotive (AEC–Q200) grade up to lead spacing 22.5 mm
