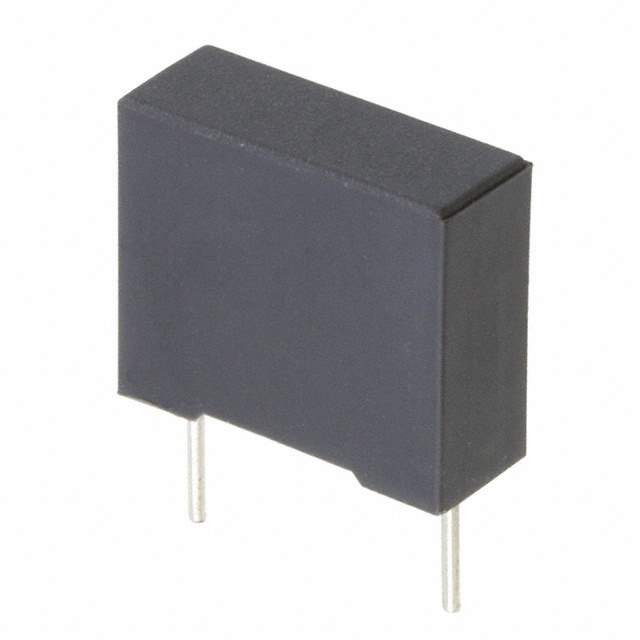

The R745F1220AA00J is a film capacitor manufactured by Kemet. It is part of the R74 series, known for its robust construction and reliability in high-frequency and high-current applications. This capacitor is designed for use in various power electronic circuits and offers stable performance under demanding conditions.

Applications

• DC filtering
• Snubber circuits
• Resonant circuits
• Power factor correction
• Renewable energy systems (solar inverters, wind turbines)

Features

• Polypropylene film capacitor
• High RMS current capability
• Low ESR (Equivalent Series Resistance)
• High pulse strength
• Self-healing properties
• RoHS compliant
• Flame retardant epoxy resin coating

Benefits

• Stable capacitance value under varying conditions
• High reliability in demanding applications
• Effective filtering and energy storage capabilities
• Long operational life

Additional Details

The R745F1220AA00J film capacitor is constructed using a metallized polypropylene film, which provides excellent electrical characteristics and long-term stability. The low ESR minimizes power dissipation and improves the overall efficiency of the circuit. The high pulse strength allows the capacitor to withstand high-voltage surges and transient currents. The self-healing properties ensure that minor insulation faults are automatically cleared, prolonging the capacitor's lifespan. The flame retardant epoxy resin coating provides protection against environmental factors and enhances safety. This capacitor is commonly used in power supplies, inverters, and other power electronic equipment where a reliable and high-performance capacitor is required.
