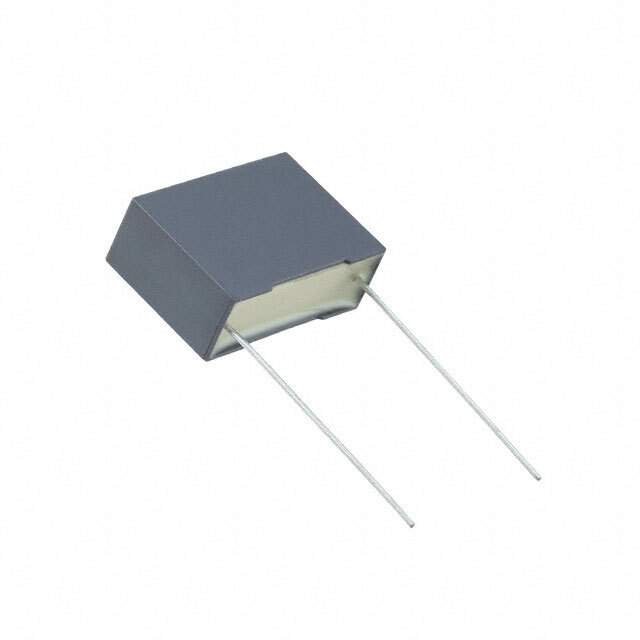

Same model may have multiple batches, images only for reference.

R71VN41004030K

Name: R71VN41004030K
Brand: Kemet
SKU: 1103953
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	R71VN41004030K
Manufacturer	Kemet
Catalog	Film Capacitors
Description	CAP FILM 1UF 10% 520VDC RADIAL / 1 µF Film Capacitor 250V 520V Polypropylene (PP), Metallized Radial
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Film Capacitors
Mfr	KEMET
Series	R71
Package	Bulk
Capacitance	1 µF
Tolerance	±10%
Voltage Rating - AC	250V
Voltage Rating - DC	520V
Dielectric Material	Polypropylene (PP), Metallized
Temperature Range - Operating	-40°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Dimension	1.043" L x 0.394" W (26.50mm x 10.00mm)
Height - Seated (Max)	0.732" (18.60mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC)
Base Product Number	R71VN
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.25.0010
Other Names	71VN41004030K,399-12526
Standard Package	300
Win Source Part Number	1103953-R71VN41004030K
Ultra Librarian 3D Model	Ultra Librarian R71VN41004030K CAD Model

Description

The R71 series film capacitors are designed for high frequency, switching, high pulse, DV/DT, and power factor correction (PFC) applications.

Voltage Rating: 250V AC and 520V DC
Capacitance: 1 µF
Tolerance: ±10%
Dielectric Material: Polypropylene (PP), metallized
Mounting Type: Through-hole
Package/Case: Radial
Temperature Range: -40°C to 110°C
Height: 0.732" (18.60mm)
Lead Spacing: 0.886" (22.50mm)
Standard Package: 300 pieces
Alternative Parts: ECWFE2J105K, R71PN41004030K, R75LN41004000K, R46KN410000P0K, ECW-FD2W105KB, and B32923C3105K189
