Same model may have multiple batches, images only for reference.

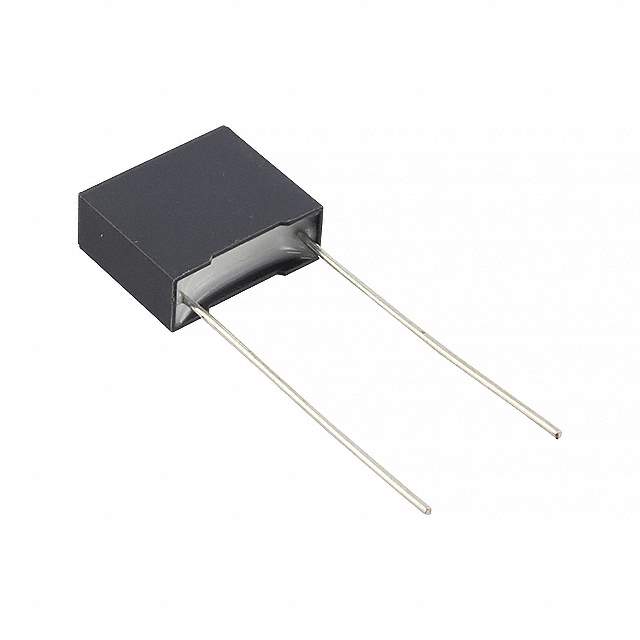

R60PI3100AA30J Real Image
Same model may have multiple batches, images only for reference.

R60PI3100AA30J

Part No R60PI3100AA30J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.1UF 5% 630VDC RAD / 0.1 µF Film Capacitor 220V 630V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series R60
Package Bulk
Capacitance 0.1 µF
Tolerance ±5%
Voltage Rating - AC 220V
Voltage Rating - DC 630V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.709" L x 0.295" W (18.00mm x 7.50mm)
Height - Seated (Max) 0.535" (13.60mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive
Ratings AEC-Q200
Base Product Number R60PI
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-19793,60PI3100AA30J
Standard Package 1,000
Win Source Part Number 1165079-R60PI3100AA30J
Ultra Librarian 3D Model Ultra Librarian R60PI3100AA30J CAD Model

Description

The 1165079-R60PI3100AA30J is a film capacitor from Kemet.

  • Type: Radial
  • Package: Bulk
  • Voltage Rating (AC): 220 volts
  • Voltage Rating (DC): 630 volts
  • Capacitance: 0.1 microfarads
  • Tolerance: 5 percent
  • Lead Spacing: 0.591 inches
  • Dielectric Material: Polyester, Polyethylene Terephthalate (PET), Metallized
  • Mounting Type: Through-Hole
  • Case/Package: Radial
  • Temperature Range: -55 degrees Celsius to 105 degrees Celsius
