Same model may have multiple batches, images only for reference.

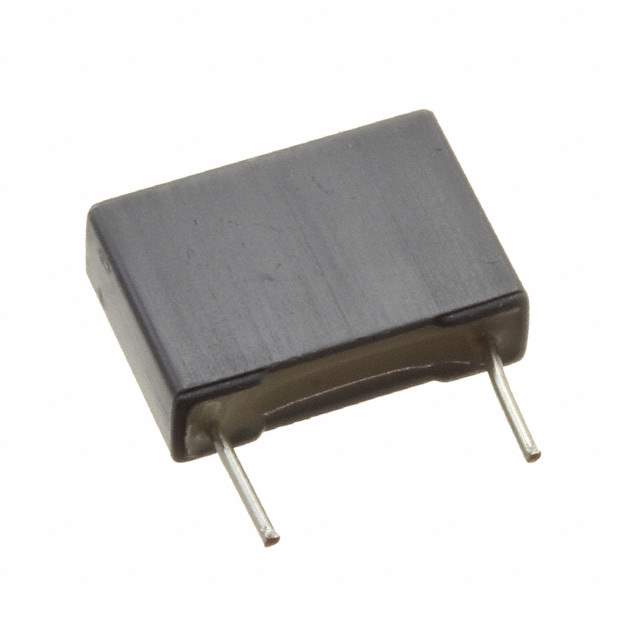

R60GF3220506AJ Real Image
Same model may have multiple batches, images only for reference.

R60GF3220506AJ

Part No R60GF3220506AJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.22UF 5% 160VDC RADIAL / Cap Film 0.22uF 160V PET 5% (13 X 4 X 9mm) Radial Stacked 10mm 105°C Automotive Bag
Datasheet
R60GF3220506AJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series R60
Packaging Bulk
Capacitance 0.22μF
Tolerance ±5%
Voltage Rating - AC 90V
Voltage Rating - DC 160V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature Range -55°C ~ 105°C
Mounting Style Through Hole
Package Radial
Dimension 0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Maximum) 0.354" (9.00mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications General
Win Source Part Number 791194-R60GF3220506AJ
Popularity Medium
Supply and Demand Status Limited
Family Name R60
Introduction Date March 03, 2014
ECCN EAR99
Country of Origin Italy
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian R60GF3220506AJ CAD Model

Description

The Kemet R60 series capacitor is a high-quality component from Kemet that is suitable for various applications.

  • Capacitance: 0.22μF
  • Tolerance: ±5%
  • Voltage Rating: 90V AC, 160V DC
  • Dielectric Material: Polyester, Polyethylene Terephthalate (PET), Metallized-Stacked
  • Package: Radial
  • Mounting Style: Through-Hole
  • Termination: PC Pins
  • Operating Temperature Range: -55°C to 105°C
  • Applications: General
  • Dimensions: 0.512" L x 0.157" W (13.00mm x 4.00mm)
  • Height: 0.354" (9.00mm)
