Same model may have multiple batches, images only for reference.

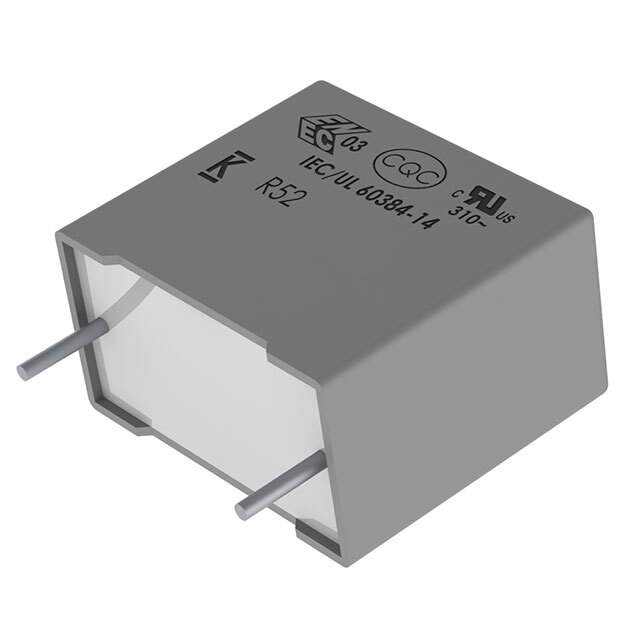

R523R415050P0K Real Image
Same model may have multiple batches, images only for reference.

R523R415050P0K

Part No R523R415050P0K
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1.5UF 10% 630VDC RADIAL / 1.5 µF Film Capacitor 310V 630V Polypropylene (PP), Metallized Radial
Datasheet
R523R415050P0K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series R52
Package Tray
Capacitance 1.5 µF
Tolerance ±10%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP) , Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.260" L x 0.433" W (32.00mm x 11.00mm)
Height - Seated (Max) 0.791" (20.10mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications Automotive
Ratings AEC-Q200, X2
Base Product Number R523R
Standard Package 336
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1350202-R523R415050P0K
Ultra Librarian 3D Model Ultra Librarian R523R415050P0K CAD Model

Description

The KEMET R523R415050P0K is a film capacitor from, designed for automotive applications.

  • Capacitance: 1.5 µF
  • Voltage Rating (DC): 630V
  • Voltage Rating (AC): 310V
  • Tolerance: ±10%
  • Certifications: AEC-Q200, X2
  • Package: Radial
  • Length: 1.260 inches
  • Width: 0.433 inches
  • Height: 0.791 inches
  • Mounting Type: Through Hole
  • Lead Spacing: 1.083 inches
  • Operating Temperature: -40°C to 110°C
