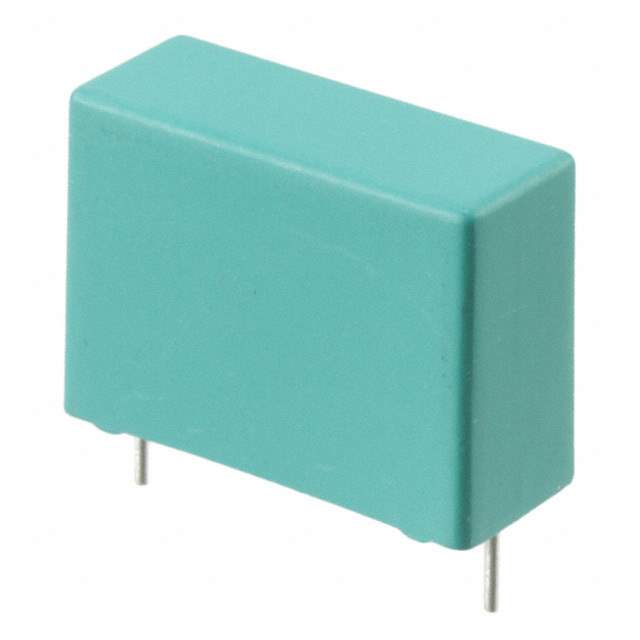

PHE850ED6100MD18R06L Real Image
Same model may have multiple batches, images only for reference.

PHE850ED6100MD18R06L

Part No PHE850ED6100MD18R06L
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.1UF 20% 1.25KVDC RAD
Datasheet
PHE850ED6100MD18R06L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.1μF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1250V (1.25kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 110°C
Mounting Through Hole
Dimension 1.024" L x 0.413" W (26.00mm x 10.50mm)
Height - Seated (Max) 0.748" (19.00mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications EMI, RFI Suppression
Features Y2 Safety Rated
Win Source Part Number 209932-PHE850ED6100MD18R06L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE850ED6100MD18R06L CAD Model

Description

The Kemet PHE850ED6100MD18R06L capacitor is a Y2 safety rated component designed for EMI and RFI suppression applications.

  • Safety Rating: Y2
  • Application: EMI and RFI suppression
  • Capacitance: 0.1μF
  • Tolerance: ±20%
  • Voltage Rating (AC): 300V AC
  • Voltage Rating (DC): 1250V DC
  • Dielectric Material: Polypropylene (PP), metallized
  • Height Seated: 0.748 inches (19.00mm)
  • Lead Spacing: 0.886 inches (22.50mm)
  • Mounting: Through hole
  • Termination: PC pins
  • Dimensions: 1.024 inches L x 0.413 inches W (26.00mm x 10.50mm)
  • Category: Capacitors
  • Status: Active
  • Supply and Demand Status: Balanced
