Same model may have multiple batches, images only for reference.

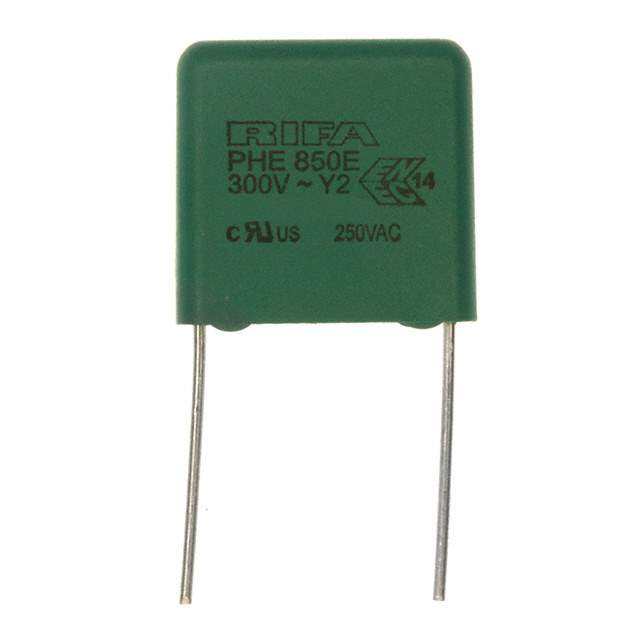

PHE850EB5470MB14R17 Real Image
Same model may have multiple batches, images only for reference.

PHE850EB5470MB14R17

Part No PHE850EB5470MB14R17
Manufacturer Kemet
Catalog Film Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series PHE850
Package Bulk
Capacitance 0.047 µF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1250V (1.25kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.709" L x 0.374" W (18.00mm x 9.50mm)
Height - Seated (Max) 0.689" (17.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Ratings Y2
Base Product Number PHE850
Other Names 399-5421,F850BV473M300A
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1302422-PHE850EB5470MB14R17
Ultra Librarian 3D Model Ultra Librarian PHE850EB5470MB14R17 CAD Model

Description

The PHE850 series film capacitors are designed to suppress EMI and RFI in electronic circuits.

  • Capacitance: 0.047 µF
  • Voltage Rating: 300V AC and 1250V DC
  • Dielectric Material: Polypropylene (PP) and metallized
  • Tolerance: ±20%
  • Rating: Y2
  • Mounting Type: Through Hole
  • Package/Case: Radial
  • Lead Spacing: 0.591" (15.00mm)
  • Height - Seated (Max): 0.689" (17.50mm)
  • Dimensions: 0.709" L x 0.374" W (18.00mm x 9.50mm)
  • Operating Temperature: -55°C to 110°C
  • Manufacturer: KEMET
