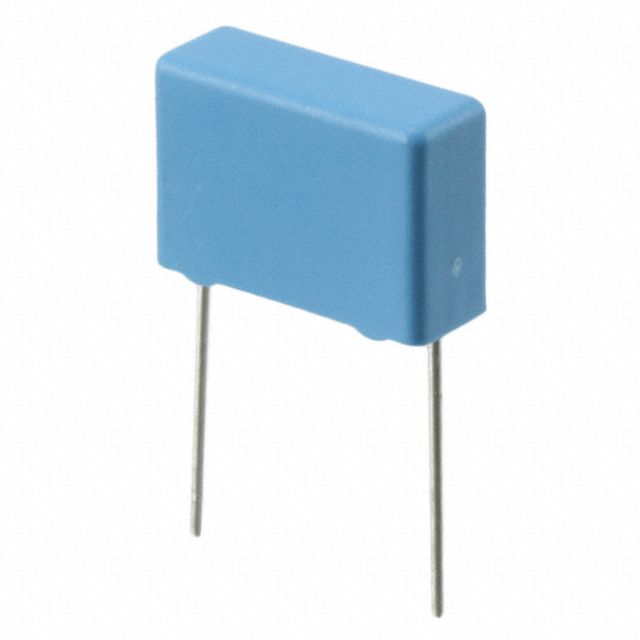

PHE820MB5470M Kemet
Same model may have multiple batches, images only for reference.

PHE820MB5470M

Part No PHE820MB5470M
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.047UF 20% 275VAC RAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.047μF
Tolerance ±20%
Voltage Rating - AC 275V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C to 100°C
Mounting Through Hole
Dimension 0.709" L x 0.256" W (18.00mm x 6.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features X2 Safety Rated
Win Source Part Number 209908-PHE820MB5470M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE820MB5470M CAD Model

Description

The Kemet 209908-PHE820MB5470M is a polyester, metallized capacitor that is X2 safety rated for EMI and RFI suppression.

  • Capacitance: 0.047μF
  • Voltage Rating: 275V
  • Lead Spacing: 0.591" (15.00mm)
  • Mounting: designed for through-hole mounting
  • Packaging: comes in a bulk packaging
  • Height: 0.492" (12.50mm)
  • Dimension: 0.709" L x 0.256" W (18.00mm x 6.50mm)
  • Applications: suitable for use in a wide range of applications, including power management, consumer electronics, and portable devices.
  • Quality: a high-quality component that offers excellent performance and reliability.
