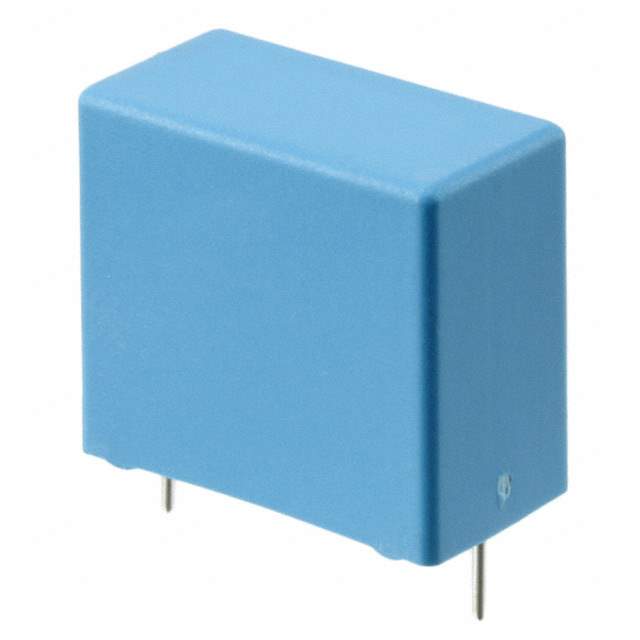

PHE450XD5220JD20R06L2

Part No PHE450XD5220JD20R06L2
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.022UF 5% 3KVDC RADIAL
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.022μF
Tolerance ±5%
Voltage Rating - AC 1000V (1kV)
Voltage Rating - DC 3000V (3kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C to 105°C
Mounting Through Hole
Dimension 1.024" L x 0.532" W (26.00mm x 13.50mm)
Height - Seated (Max) 0.906" (23.00mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications General Purpose
Win Source Part Number 209906-PHE450XD5220JD20R06L2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PHE450XD5220JD20R06L2 CAD Model

Description

This capacitor is manufactured by Kemet and has a Win Source Part Number of 209906-PHE450XD5220JD20R06L2.

  • Category: Capacitors
  • Popularity: Medium
  • Capacitance: 0.022μF
  • Tolerance: ±5%
  • Voltage Rating (AC): 1000V (1kV)
  • Voltage Rating (DC): 3000V (3kV)
  • Height when Seated: 0.906 inches
  • Mounting: Through Hole
