Same model may have multiple batches, images only for reference.

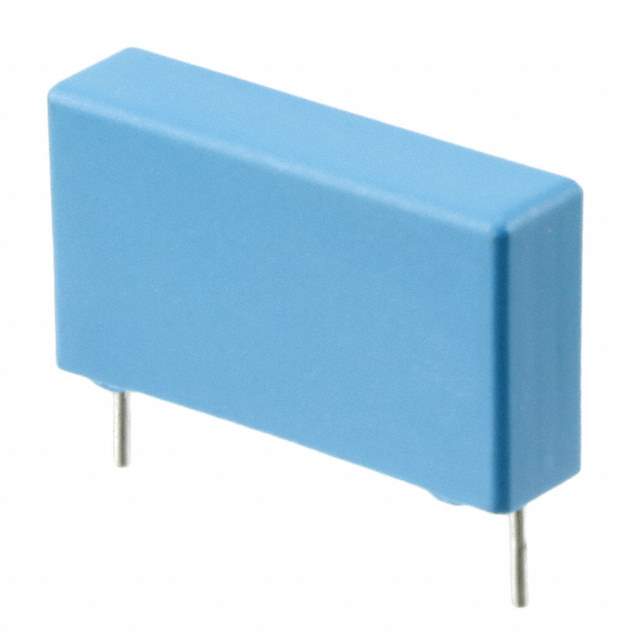

PHE450MD6100JR06L2 Real Image
Same model may have multiple batches, images only for reference.

PHE450MD6100JR06L2

Part No PHE450MD6100JR06L2
Manufacturer Kemet
Catalog Film Capacitors
Description Cap Film 0.1uF 630V PP 5% (26 X 6.5 X 14.5mm) Radial Wound 22.5mm 105°C Bulk / CAP FILM 0.1UF 5% 630VDC RADIAL
Datasheet
PHE450MD6100JR06L2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series PHE450
Packaging Bulk
Capacitance 0.1μF
Tolerance ±5%
Voltage Rating - AC 400V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Operating Temperature Range -55°C ~ 105°C
Mounting Style Through Hole
Package Radial
Dimension 1.024" L x 0.256" W (26.00mm x 6.50mm)
Height - Seated (Maximum) 0.571" (14.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications General
Win Source Part Number 788388-PHE450MD6100JR06L2
Popularity Medium
Supply and Demand Status Limited
Family Name PHE450
Introduction Date July 08, 2016
ECCN EAR99
Country of Origin Indonesia
Estimated EOL Date 2032
Ultra Librarian 3D Model Ultra Librarian PHE450MD6100JR06L2 CAD Model

Description

The PHE450MD6100JR06L2 from Kemet is a through-hole capacitor.

  • Applications: General
  • Capacitance: 0.1μF
  • Voltage Rating: 400V AC, 630V DC
  • Tolerance: ±5%
  • Lead Spacing: 0.886” (22.50mm)
  • Dielectric: Polypropylene (PP), Metallized
  • Height: 0.571” (14.50mm)
  • Dimension: 1.024” L x 0.256” W (26.00mm x 6.50mm)
  • Operating Temperature: -55°C ~ 105°C
  • Cross-Reference: BFC236869104, BFC236866104, BFC236867104, BFC236862104
  • Country of Origin: Indonesia
  • Estimated EOL Date: 2032
