Same model may have multiple batches, images only for reference.

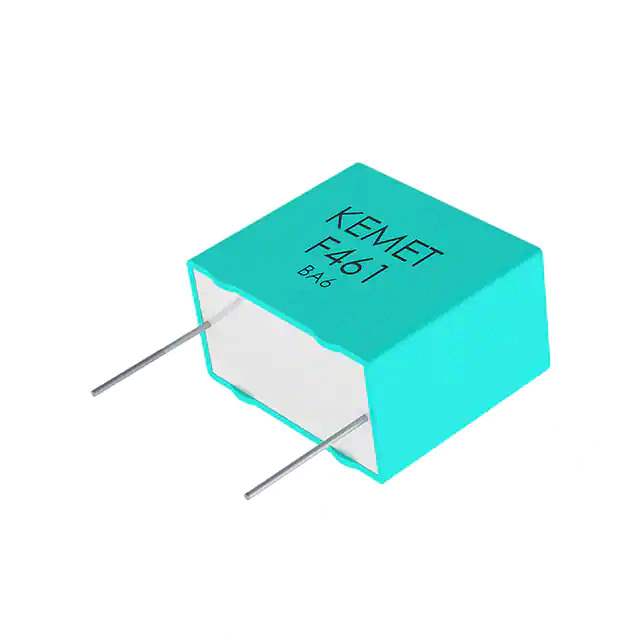

PHE426KB6470JR06 Real Image
Same model may have multiple batches, images only for reference.

PHE426KB6470JR06

Part No PHE426KB6470JR06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.47UF 5% 400VDC RADIAL / 0.47 μF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial
Datasheet
PHE426KB6470JR06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series PHE426
Package Box
Product Status Active
Capacitance 0.47 µF
Tolerance ±5%
Voltage Rating - AC 220V
Voltage Rating - DC 400V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.709" L x 0.374" W (18.00mm x 9.50mm)
Height - Seated (Max) 0.689" (17.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Base Product Number PHE426
Standard Package 500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 889038-PHE426KB6470JR06
Ultra Librarian 3D Model Ultra Librarian PHE426KB6470JR06 CAD Model

Description

The 889038-PHE426KB6470JR06 is a film capacitor from the PHE426 series by KEMET.

  • Series: PHE426
  • Capacitance: 0.47 μF
  • Voltage Rating: 400V AC and 220V DC
  • Mounting: Through-Hole
  • Package: Radial
  • Size: 0.709" L x 0.374" W (18.00mm x 9.50mm)
  • Height: 0.689" (17.50mm)
  • Material: Polypropylene (PP)
  • Construction: Metallized
  • Applications: DC link, DC filtering, high frequency, switching, and high pulse
  • Operating Temperature: -55°C to 105°C
  • Status: Active
  • REACH: Not affected
