Same model may have multiple batches, images only for reference.

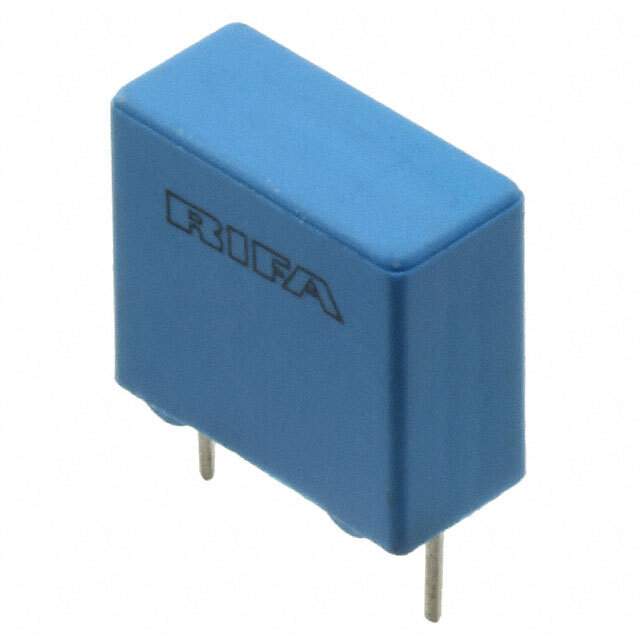

PHE426HB6470JR06 Real Image
Same model may have multiple batches, images only for reference.

PHE426HB6470JR06

Part No PHE426HB6470JR06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.47UF 5% 250VDC RADIAL / 0.47 µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series PHE426
Package Bulk
Capacitance 0.47 µF
Tolerance ±5%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.709" L x 0.295" W (18.00mm x 7.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Base Product Number PHE426
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names 399-PHE426HB6470JR06,F426BL474J250C,399-11460-ND,399-F426BL474J250C-ND,399-F426BL474J250C,399-11460
Standard Package 800
Win Source Part Number 1047848-PHE426HB6470JR06
Ultra Librarian 3D Model Ultra Librarian PHE426HB6470JR06 CAD Model

Description

The 1047848-PHE426HB6470JR06 is a film capacitor used in electronic devices.

  • Manufacturer: Kemet
  • Type: Film Capacitor
  • Capacitor Type: Radial
  • Package: Bulk
  • Voltage Rating (AC): 160 volts
  • Voltage Rating (DC): 250 volts
  • Capacitance: 0.47 microfarads
  • Tolerance: 5 percent
  • Lead Spacing: 0.591 inches
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting Type: Through-Hole
  • Case: Radial
  • Temperature Range: -55 degrees Celsius to 105 degrees Celsius
