Same model may have multiple batches, images only for reference.

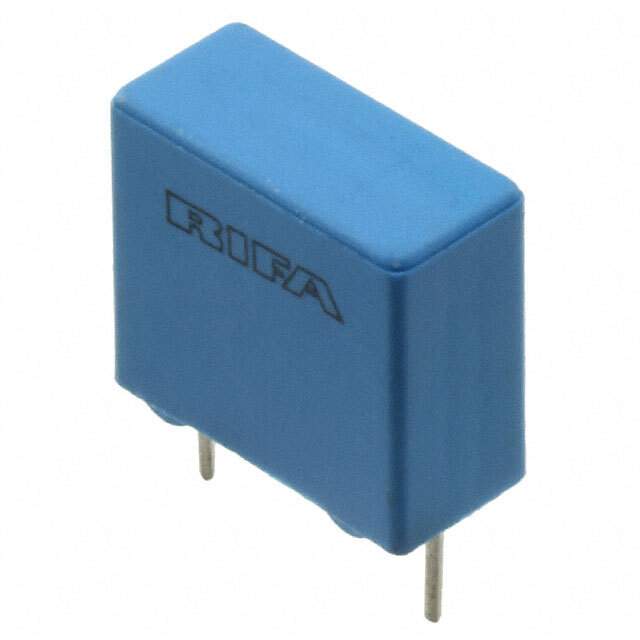

PHE426HB6220JR06 Real Image
Same model may have multiple batches, images only for reference.

PHE426HB6220JR06

Part No PHE426HB6220JR06
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.22UF 5% 250VDC RADIAL / 0.22 µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Manufacturer Kemet
Packaging Bulk
Capacitance 0.22 µF
Tolerance ±5%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Through Hole
Case / Package Radial
Size / Dimension 0.709" L x 0.217" W (18.00mm x 5.50mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Base Product Number PHE426
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Part Number 399-11459,399-PHE426HB6220JR06,F426BD224J250C,399-11459-ND,399-F426BD224J250C-ND,399-F426BD224J250C
Standard Package 1,000
Win Source Part Number 1330221-PHE426HB6220JR06
Ultra Librarian 3D Model Ultra Librarian PHE426HB6220JR06 CAD Model

Description

The Kemet OEM part 1330221-PHE426HB6220JR06 is a high-quality film capacitor that is designed to offer reliable performance.

  • Manufacturer: Kemet
  • Category: Capacitors>Film Capacitors
  • Popularity: High
  • Capacitance: 0.22 µF
  • Tolerance: ±5%
  • Application: DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
  • Supply and Demand Status: Balanced
  • Package: Radial
  • Operating Temperature: -55°C ~ 105°C
