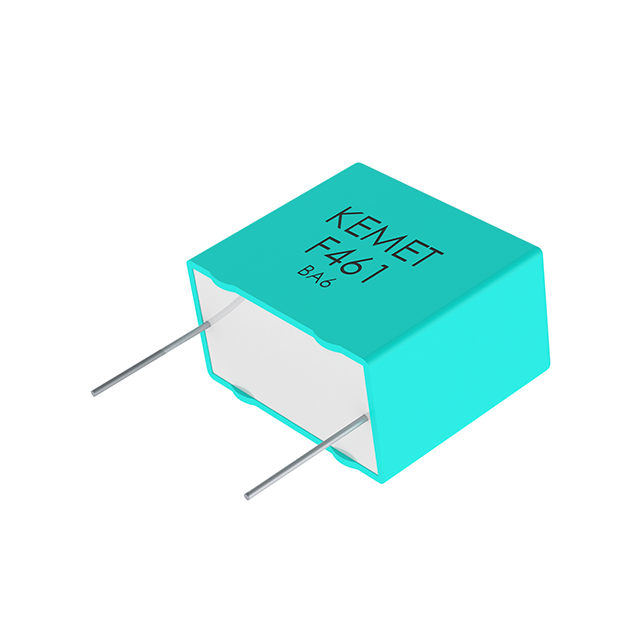

Same model may have multiple batches, images only for reference.
PHE426DJ4100JR05 Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PHE426DJ4100JR05

Part No PHE426DJ4100JR05
Manufacturer Kemet
Catalog Film Capacitors
Description 1000 pF Film Capacitor 63V 100V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr KEMET
Series PHE426
Packaging Box
Capacitance 1000 pF
Tolerance ±5%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.283" L x 0.098" W (7.20mm x 2.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Termination PC Pins
Lead Spacing 0.197" (5.00mm)
Applications DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Base Product Number PHE426
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1480725-PHE426DJ4100JR05
Ultra Librarian 3D Model Ultra Librarian PHE426DJ4100JR05 CAD Model
