Same model may have multiple batches, images only for reference.

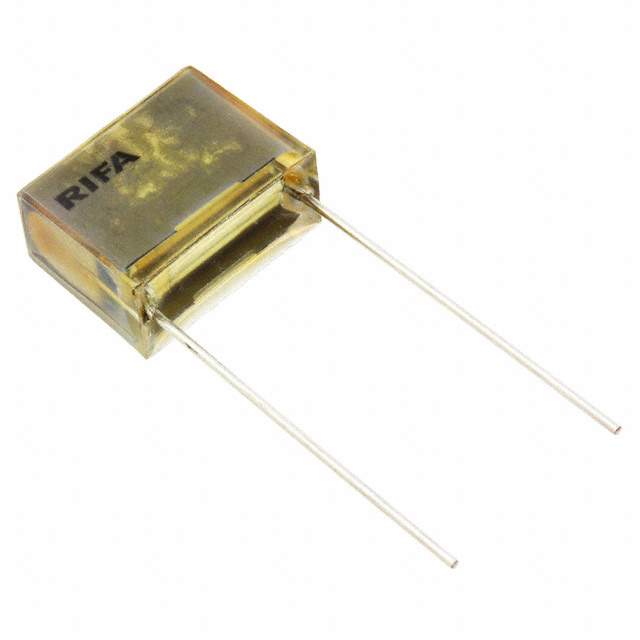

P277QN223M300A Real Image
Same model may have multiple batches, images only for reference.

P277QN223M300A

Part No P277QN223M300A
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.022UF 20% 630VDC RAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 0.022μF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 630V
Dielectric Material Paper, Metallized
Temperature Range - Operating -40°C to 110°C
Dimension 0.748" L x 0.287" W (19.00mm x 7.30mm)
Height - Seated (Max) 0.512" (13.00mm)
Termination PC Pins
Lead Spacing 0.598" (15.20mm)
Applications EMI, RFI Suppression
Features X1 Safety Rated
Win Source Part Number 209569-P277QN223M300A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P277QN223M300A CAD Model

Description

The Kemet P277QN223M300A is an X1 safety rated film capacitor. It has a capacitance of 0.022μF with a tolerance of ±20%.

  • Voltage Rating (AC): 300V
  • Voltage Rating (DC): 630V
  • Application: EMI and RFI suppression
  • Height: 0.512" (13.00mm)
  • Lead Spacing: 0.598" (15.20mm)
  • Product Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Balanced
