Same model may have multiple batches, images only for reference.

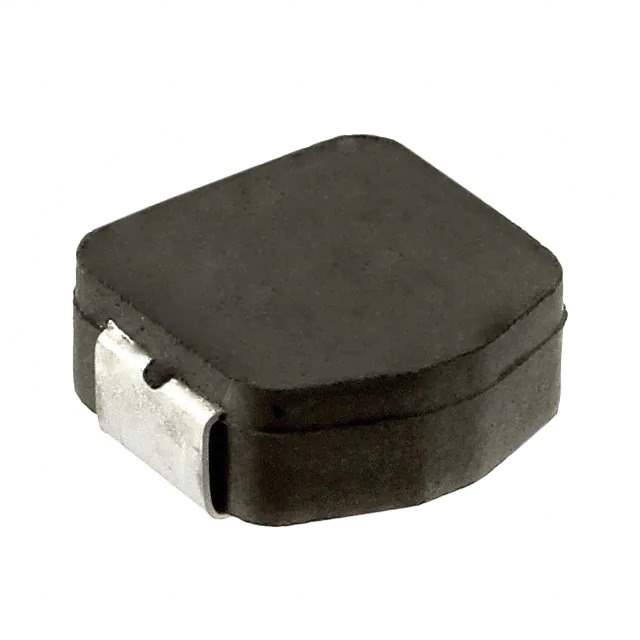

MPLCG0630L4R7 Real Image
Same model may have multiple batches, images only for reference.

MPLCG0630L4R7

Part No MPLCG0630L4R7
Manufacturer Kemet
Catalog Fixed Inductors
Description FIXED IND 4.7UH 5.5A 41 MOHM SMD
Datasheet
MPLCG0630L4R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr KEMET
Series MPLCG
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 5.5 A
Current - Saturation (Isat) 5.4A
Shielding Shielded
DC Resistance (DCR) 41mOhm Max
Temperature Range - Operating -20°C ~ 120°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.295" L x 0.264" W (7.50mm x 6.70mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number MPLCG0630
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 643847-MPLCG0630L4R7
Ultra Librarian 3D Model Ultra Librarian MPLCG0630L4R7 CAD Model

Description

The 643847-MPLCG0630L4R7 is a fixed inductor from KEMET's MPLCG series. It is a drum core, wirewound inductor with a shielded package.

  • Series: MPLCG
  • Type: Fixed Inductor, Drum Core, Wirewound, Shielded
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • DCR: 41mOhm max
  • Current Rating: 5.5A
  • Dimensions: 0.295" L x 0.264" W (7.50mm x 6.70mm)
  • Height: 0.118" (3.00mm)
  • Mounting: Surface Mount
  • Operating Temperature: -20°C to 120°C
  • Core Material: Metal Composite
