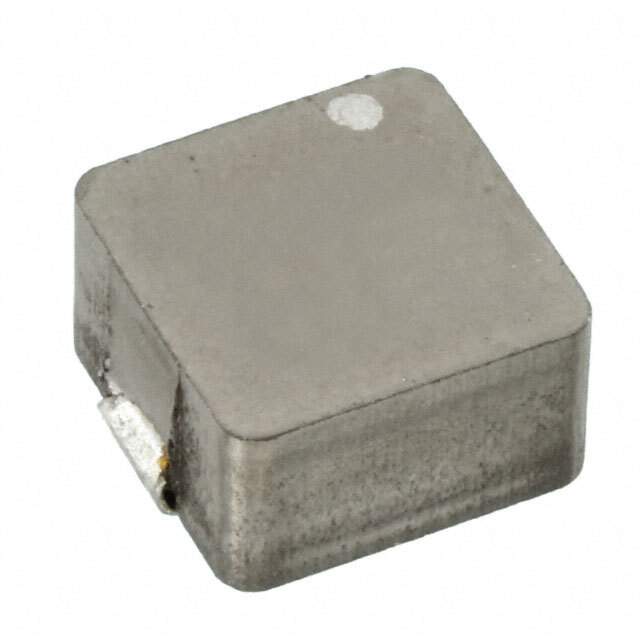

MPCH1060LR45 Real Image
Same model may have multiple batches, images only for reference.

MPCH1060LR45

Part No MPCH1060LR45
Manufacturer Kemet
Catalog Fixed Inductors
Description FIXED IND 450NH 32A 0.76 MOHM / Inductor Power Wirewound 0.45uH 20% 100KHz Ferrite 32A 0.00076Ohm DCR T/R
Datasheet
MPCH1060LR45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Kemet
Series MPCH
Packaging Reel package
Material - Core Metal Composite
Inductance 450nH
Tolerance ±20%
Current Rating 32A
Current - Saturation 32A
Shielding Unshielded
DC Resistance (DCR) 0.76 mOhm
Operating Temperature Range -20°C ~ 120°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.472" L x 0.394" W (12.00mm x 10.00mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Win Source Part Number 789332-MPCH1060LR45
Popularity Medium
Supply and Demand Status Balance
Family Name MPCH
ECCN EAR99
Country of Origin Vietnam
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian MPCH1060LR45 CAD Model

Description

The Kemet 789332-MPCH1060LR45 inductor is a nonstandard package component that is built for general-purpose applications.

  • Current Rating: 32A
  • Shielding: Unshielded
  • Inductance: 450nH ±20%
  • Material-Core: Metal Composite
  • Current Saturation: 32A
  • DC Resistance (DCR): 0.76 mOhm
  • Test Frequency: 100kHz
  • Temperature Range: -20°C to 120°C
  • Dimension: 0.472" L x 0.394" W (12.00mm x 10.00mm)
  • Manufacturer Package: None
  • Height Seated: 0.236" (6.00mm)
  • Supply and Demand Status: Balanced
  • Alternative Parts (Cross-Reference): PA4342.471ANLT, PG0437.451NL, TPS-PA-1040-R47M, CTIHLP104F-R47M
