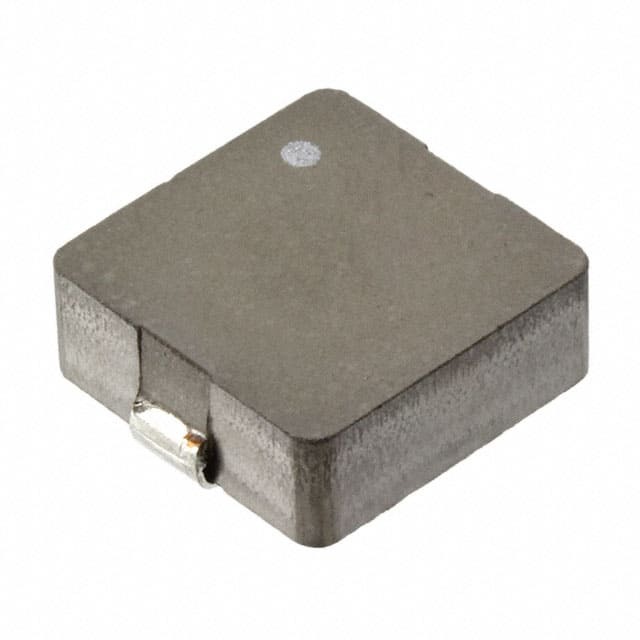

Same model may have multiple batches, images only for reference.

MPC1250LR36C

Name: MPC1250LR36C
Brand: Kemet
SKU: 1315652
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MPC1250LR36C
Manufacturer	Kemet
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	MPC
Package	Tape & Reel
Material - Core	Ferrite
Inductance	360 nH
Tolerance	±20%
Current Rating (Amps)	38 A
Current - Saturation (Isat)	40A
Shielding	Shielded
DC Resistance (DCR)	0.65mOhm
Temperature Range - Operating	-20°C ~ 120°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	2-SMD, J-Lead
Dimension	0.571" L x 0.492" W (14.50mm x 12.50mm)
Height - Seated (Max)	0.197" (5.00mm)
Base Product Number	MPC1250
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1315652-MPC1250LR36C
Ultra Librarian 3D Model	Ultra Librarian MPC1250LR36C CAD Model

Alternative Products

Description

The 1315652-MPC1250LR36C is a fixed inductor from the MPC series from KEMET.

Inductance: 360 nH
Current Rating: 38A
Shielded: Yes
Tolerance: ±20%
Temperature Range: -20°C to 120°C
DC Resistance (DCR): 0.65mOhm
Package: 2-SMD, J-Lead
Dimension: 0.571" L x 0.492" W (14.50mm x 12.50mm)
ECCN: EAR99
REACH: Unaffected
Inductance Frequency-Test: 100 kHz
HTSUS: 8504.50.4000
