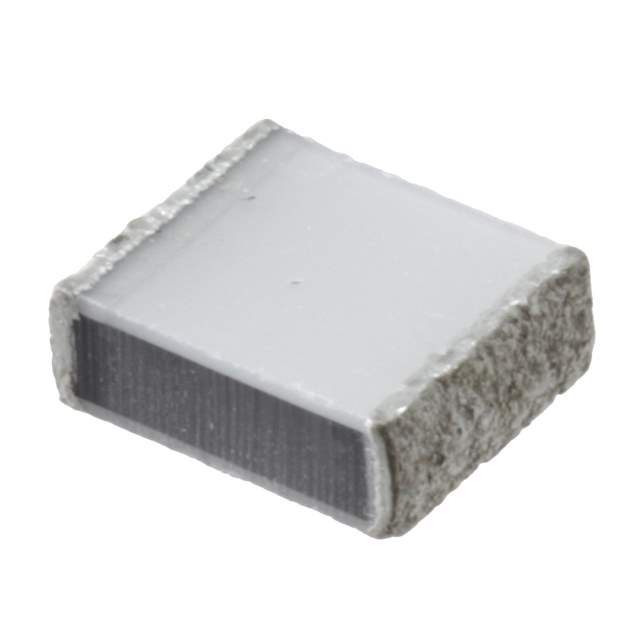

Same model may have multiple batches, images only for reference.

LDEPD2100KA5N00

Name: LDEPD2100KA5N00
Brand: Kemet
SKU: 613232
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LDEPD2100KA5N00
Manufacturer	Kemet
Catalog	Film Capacitors
Description	SMD Film Capacitors Catalogue \| CAP FILM 10000PF 10% 630VDC 2220
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Kemet
Packaging	Reel
Capacitance	10000pF
Tolerance	±10%
Voltage Rating - AC	200V
Voltage Rating - DC	630V
Dielectric Material	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Temperature Range - Operating	-55°C ~ 125°C
Mounting Style	SMD
Manufacturer Package	2220 (5750 Metric)
Parts Dimension	0.236" L x 0.197" W (6.00mm x 5.00mm)
Height - Seated (Maximum)	0.118" (3.00mm)
Termination	Solder Pads
Applications	Automotive
Ratings	AEC-Q200
Features	High Temperature
Manufacturer Pack Quantity	1
MSL Level	2A (4 Weeks)
Win Source Part Number	1195920-LDEPD2100KA5N00
Manufacturer Homepage	www.kemet.com
Family Name	LDE
Introduction Date	May 27, 2009
ECCN	EAR99
Country of Origin	China, Indonesia, Italy
Halogen Free	Unknown
Estimated EOL Date	2026
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian LDEPD2100KA5N00 CAD Model

Description

The Kemet LDE series capacitor is a high-temperature capacitor with a capacitance of 10000pF and a tolerance of ±10%.

Voltage Rating: 200V AC and 630V DC
Application: Automotive applications
Material: Polyester, polyethylene naphthalate (PEN), and metallized-stacked dielectric material
Package: 2220 (5750 Metric)
Maximum Seated Height: 0.118" (3.00mm)
AEC-Q200 Rated: Yes
Estimated EOL Date: 2026
Popularity: High
Supply and Demand Status: Sufficient
Manufacturer Pack Quantity: 1
MSL Level: 2A (4 Weeks)
Alternative Parts: CB047K0103KBC, CB047K0103K--, and LDEPD2100JA5N00
Manufacturer: Kemet
