ATA5830N-PNQW

Part No ATA5830N-PNQW
Manufacturer Atmel
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU ISM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Microchip Technology
Packaging Reel - TR
Status Obsolete(EOL)
Type TxRx + MCU
RF Family/Standard General ISM
Modulation ASK, FSK
Frequency 315MHz, 434MHz, 868MHz, 915MHz
Data Rate (Max) 80kbps
Power - Output 14.5dBm
Sensitivity -121dBm
Memory Size 6kB Flash, 512B EEPROM, 24kB ROM, 768B SRAM
Serial Interfaces SPI
Supply Voltage - Operating 1.9 V to 3.6 V
Current - Receiving 9.3mA
Current - Transmitting 9.1mA to 13.8mA
Temperature Range - Operating -40°C to 105°C

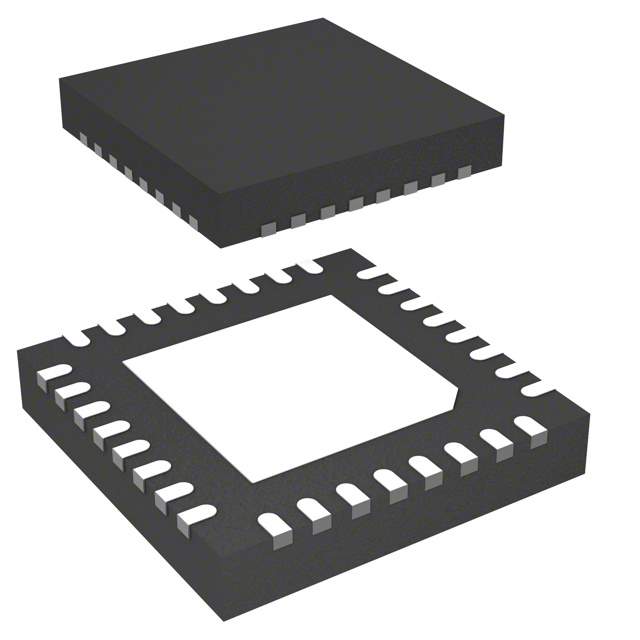

Dimension 32-VFQFN Exposed Pad
Win Source Part Number 123443-ATA5830N-PNQW
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ATA5830N-PNQW CAD Model

Description

Product Description for ATA5830N-PNQW

The ATA5830N-PNQW is designed with versatility and power efficiency in mind, making it ideal for a broad array of wireless networking applications. Its powerful feature set includes advanced modulation techniques and versatile configuration options to meet dynamic operational requirements.

  • Applications:
    • Wireless mesh networks
    • Remote monitoring
    • Automated controlling systems
  • Features and Benefits:
    • High data rate transmission for bandwidth-intensive applications
    • Advanced modulation schemes for efficient data encoding
    • Supports multiple communication protocols
  • Additional Details:
    • Designed to minimize power usage without compromising performance.
    • Flexible antenna support for various deployment scenarios.
