Products specifications

Category Capacitors>Film Capacitors
Mfr KEMET
Series LDE
Package Tape & Reel (TR)
Capacitance 1 µF
Tolerance ±20%
Voltage Rating - AC 40V
Voltage Rating - DC 50V
Dielectric Material Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 2220 (5750 Metric)
Dimension 0.236" L x 0.197" W (6.00mm x 5.00mm)
Height - Seated (Max) 0.173" (4.40mm)
Termination Solder Pads
Applications Automotive
Ratings AEC-Q200
Features High Temperature
Base Product Number LDECD
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names DECD4100MA0N00
Standard Package 1,750
Win Source Part Number 1051537-LDECD4100MA0N00
Ultra Librarian 3D Model Ultra Librarian LDECD4100MA0N00 CAD Model

Description

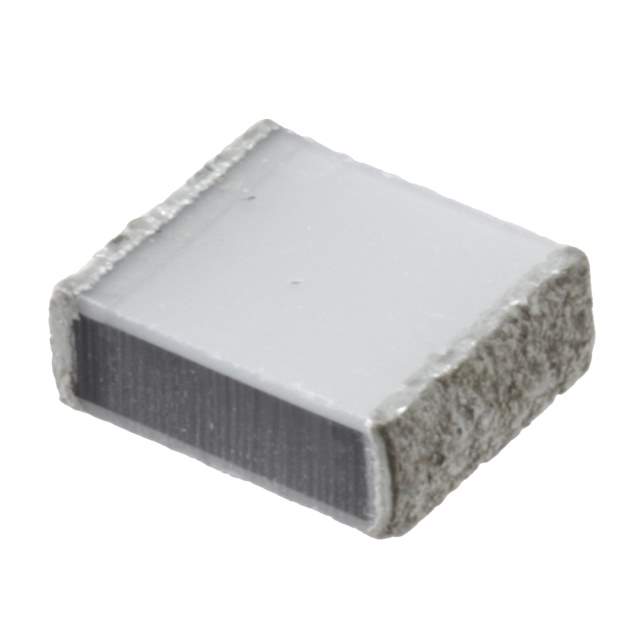

The Kemet LDECD4100MA0N00 is a film capacitor in the LDE series of electronic components.

  • Capacitance: 1 µF
  • Tolerance: ±20%
  • AEC-Q200: rated
  • Designed for: automotive applications
  • Mounting: surface mount technology
  • Height: 0.173" (4.40mm)
  • Temperature range: -55°C to 125°C
  • Supplied: in tape & reel packaging
