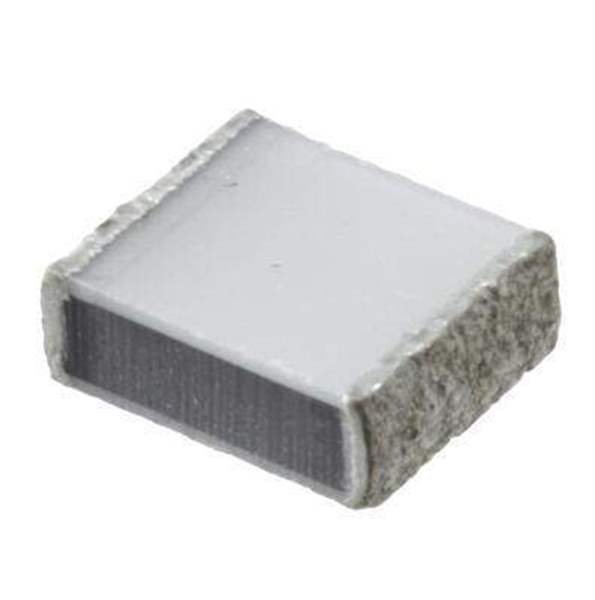

LDECD3330JA5N00KEMET
Same model may have multiple batches, images only for reference.

LDECD3330JA5N00

Part No LDECD3330JA5N00
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.33UF 5% 50VDC 2220
Datasheet
LDECD3330JA5N00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KEMET
Category Capacitors Film Capacitors
Part Status Active
Capacitance 0.33 µF
Tolerance ±5%
Voltage Rating - AC 40V
Voltage Rating - DC 50V
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.236" L x 0.197" W (6.00mm x 5.00mm)
Height - Seated (Max) 0.075" (1.90mm)
Termination Solder Pads
Applications Automotive
Win Source Part Number WS1306443-LDECD3330JA5N00
Ultra Librarian 3D Model Ultra Librarian LDECD3330JA5N00 CAD Model

Description

Benefits
• Rated voltage: 50 – 1,000 VDC
• Rated voltage: 40 – 250 VAC
• Capacitance range: 0.001 – 4.7 µF
• EIA Size: 1206 – 6054
• Capacitance tolerance: ±10%, ±20%, ±5% on request
• Climatic category: 55/125/56
• RoHS Compliant and lead-free terminations
• Operating temperature range of −55°C to +125°C
• Automotive (AEC–Q200) grades available
