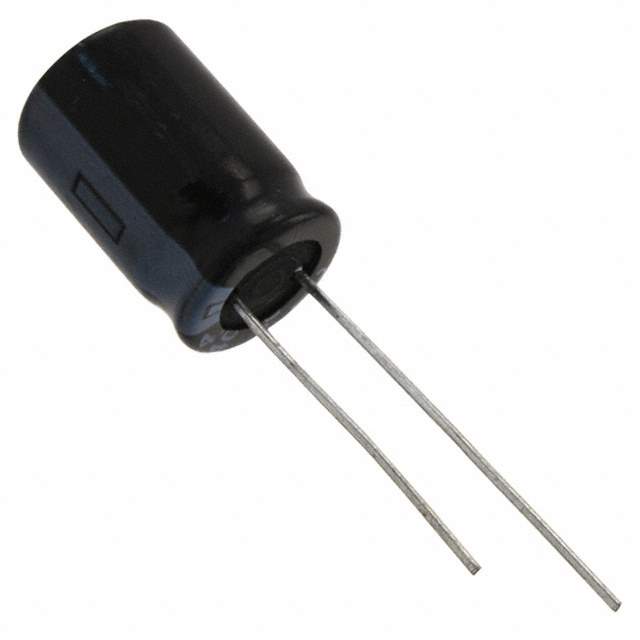

Same model may have multiple batches, images only for reference.

ESH475M450AH2AA

Name: ESH475M450AH2AA
Brand: Kemet
SKU: 1329765
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ESH475M450AH2AA
Manufacturer	Kemet
Catalog	Aluminum Capacitors
Description	CAP ALUM 4.7UF 20% 450V RADIAL / 4.7 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Kemet
Packaging	Bulk
Capacitance	4.7 µF
Tolerance	±20%
Voltage - Rated	450 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	59 mA @ 120 Hz
Ripple Current @ High Frequency	94.4 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.669" (17.00mm)
Mounting	Through Hole
Case / Package	Radial, Can
Base Product Number	ESH475M
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	399-6585,SH475M450AH2AAKPLP
Standard Package	3,000
Win Source Part Number	1329765-ESH475M450AH2AA
Ultra Librarian 3D Model	Ultra Librarian ESH475M450AH2AA CAD Model

Description

The Kemet 1329765-ESH475M450AH2AA is an aluminum electrolytic capacitor designed for general purpose applications.

Application: general purpose
Capacitance: 4.7 µF
Voltage Rating: 450 V
Series: ESH475M
Package: radial, can-shaped case/package
Polarization: polarized
Standard Package: 3,000
Lead Spacing: 0.197" (5.00mm)
ESR: not specified
Lifetime @ Temperature: 2000 Hrs @ 105°C
Tolerance: ±20%
Ripple Current: 59 mA @ 120 Hz (low frequency) and 94.4 mA @ 10 kHz (high frequency)
ROHS3 Compliant: compliant
ECCN: EAR99
