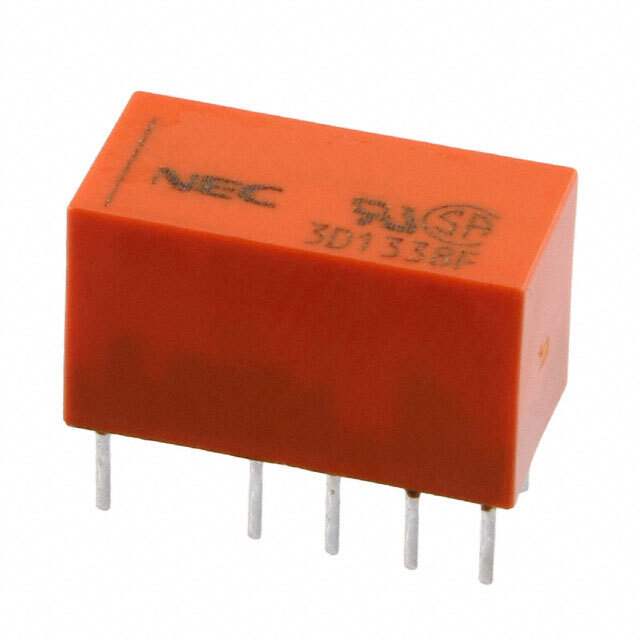

EC2-4.5TNU

Part No EC2-4.5TNU
Manufacturer Kemet
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 4.5V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Kemet
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Latching, Dual Coil
Coil Current 31.1mA
Coil Voltage 4.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 3.38 VDC
Operate Time 2ms
Release Time 1ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 140 mW
Coil Resistance 145 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 080863-EC2-4.5TNU
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EC2-4.5TNU CAD Model

Description

Product Overview

The EC2-4.5TNU is a technologically advanced relay catering to low-voltage needs with enhanced thermal performance, ensuring optimal operation even under harsh conditions.

Features and Benefits

  • Enhanced thermal management for improved longevity
  • Low power requirements, optimizing energy use
  • High precision in switching capabilities
  • Ease of installation and integration

Applications

  • Temperature control devices
  • Smart home technologies
  • Portable electronic gadgets
  • Low-power automation systems

With its focus on thermal efficiency and reliability, the EC2-4.5TNU is an excellent choice for advanced low-power applications.
