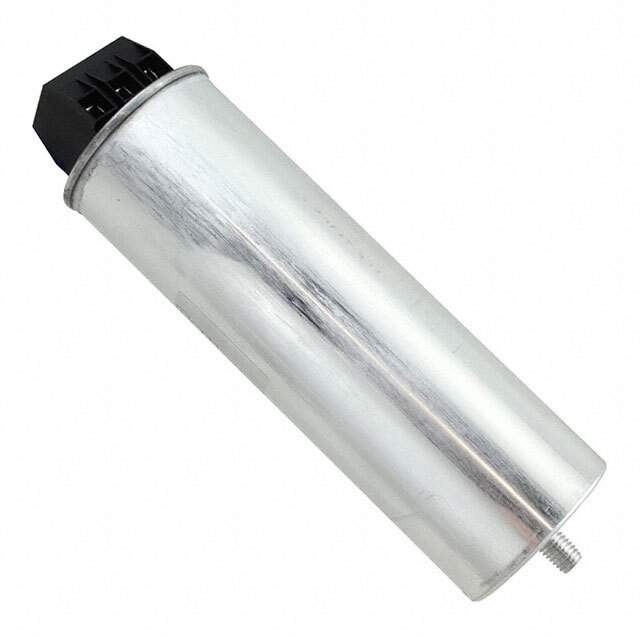

C9TS5MD5460AARX Real Image
Same model may have multiple batches, images only for reference.

C9TS5MD5460AARX

Part No C9TS5MD5460AARX
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 46UF 415VAC RADIAL / 46 µF Film Capacitor 415V Polypropylene (PP), Metallized Radial, Can
Datasheet
C9TS5MD5460AARX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series C9T
Package Bulk
Capacitance 46 µF
Tolerance -5%, +15%
Voltage Rating - AC 415V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -25°C ~ 55°C
Mounting Type Chassis, Stud Mount
Package / Case Radial, Can
Dimension 2.953" Dia (75.00mm)
Height - Seated (Max) 6.378" (162.00mm)
Termination Terminal Block
Lead Spacing 0.748" (19.00mm)
Applications 3 Phase, Power Factor Correction (PFC)
Base Product Number C9TS5MD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Other Names 399-13643,9TS5MD5460AARX
Standard Package 12
Win Source Part Number 1054882-C9TS5MD5460AARX
Ultra Librarian 3D Model Ultra Librarian C9TS5MD5460AARX CAD Model

Description

The C9TS5MD5460AARX capacitor is a film capacitor that belongs to the C9T series.

  • Application: 3-phase power factor correction (PFC)
  • Capacitance: 46 µF
  • Tolerance: -5%, +15%
  • Voltage Rating: 415V AC
  • Temperature Range: -25°C to 55°C
  • Dielectric Material: Polypropylene (PP) which is metallized
  • Mounting: Chassis and stud mount
  • Packaging: Bulk
  • Height: 6.378" (162.00mm)
  • Diameter: 2.953" (75.00mm)
  • Package: Radial can
