Same model may have multiple batches, images only for reference.

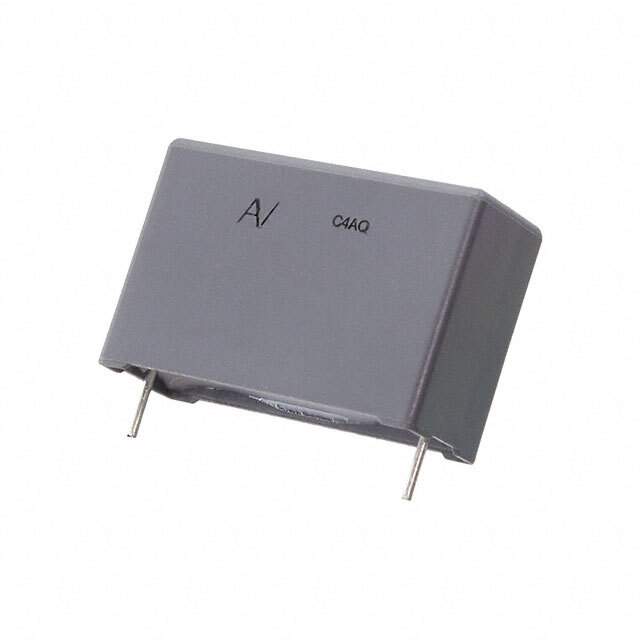

C4AQLBU5250M12K Real Image
Same model may have multiple batches, images only for reference.

C4AQLBU5250M12K

Part No C4AQLBU5250M12K
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 25UF 10% 500VDC RADIAL / 25 µF Film Capacitor 500V Polypropylene (PP), Metallized Radial
Datasheet
C4AQLBU5250M12K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series C4AQ-M
Package Bulk
Capacitance 25 µF
Tolerance ±10%
Voltage Rating - DC 500V
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 4.4 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.240" L x 0.866" W (31.50mm x 22.00mm)
Height - Seated (Max) 1.465" (37.20mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications Automotive; DC Link, DC Filtering
Ratings AEC-Q200
Features Low ESL
Base Product Number C4AQLB
Standard Package 64
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1338642-C4AQLBU5250M12K
Ultra Librarian 3D Model Ultra Librarian C4AQLBU5250M12K CAD Model

Description

The KEMET C4AQ-M film capacitor is designed for use in automotive applications such as DC link and DC filtering.

  • Application: DC Link, DC Filtering (Automotive)
  • Capacitance: 25 µF
  • Voltage Rating: 500V DC
  • Mounting Type: Through Hole
  • Package/Case: Radial
  • Dielectric Material: Polypropylene (PP) Metallized
  • Operating Temperature: -55°C to 105°C
  • ESL: Low
  • Packaging: Bulk
  • Standard Package: 64 Pieces
