Same model may have multiple batches, images only for reference.

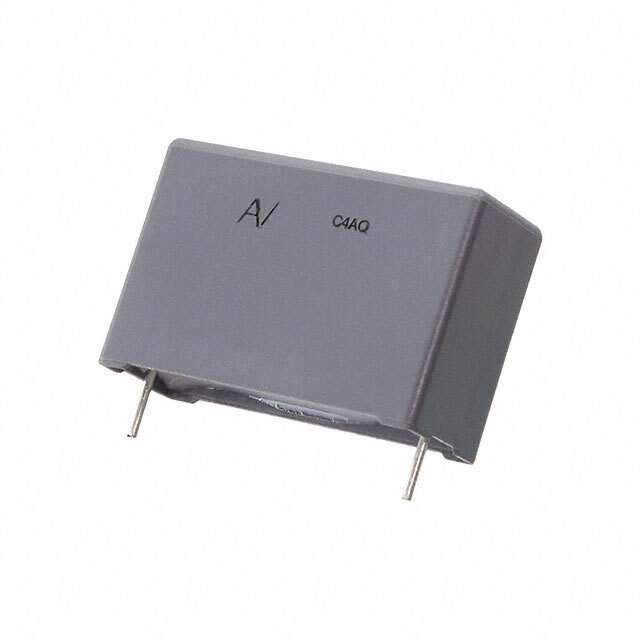

C4AQCBU4560A1XJ Real Image
Same model may have multiple batches, images only for reference.

C4AQCBU4560A1XJ

Part No C4AQCBU4560A1XJ
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 5.6UF 5% 650VDC RADIAL / 5.6 µF Film Capacitor 650V Polypropylene (PP), Metallized Radial
Datasheet
C4AQCBU4560A1XJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series C4AQ
Package Bulk
Capacitance 5.6 µF
Tolerance ±5%
Voltage Rating - DC 650V
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 10.7 mOhms
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.240" L x 0.512" W (31.50mm x 13.00mm)
Height - Seated (Max) 0.992" (25.20mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications Automotive; DC Link, DC Filtering
Ratings AEC-Q200
Base Product Number C4AQCB
Standard Package 234
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1351116-C4AQCBU4560A1XJ
Ultra Librarian 3D Model Ultra Librarian C4AQCBU4560A1XJ CAD Model

Description

This is a 650V film capacitor from KEMET's C4AQ series with a capacitance of 5.6 µF and a tolerance of ±5%.

  • ESR (Equivalent Series Resistance): 10.7 mOhms
  • Dielectric Material: Polypropylene (PP), Metallized
  • Applications: DC Link, DC Filtering
  • Automotive: AEC-Q200
  • Mounting Type: Through Hole
  • Package / Case: Radial
  • Lead Spacing: 1.083" (27.50mm)
  • Size: 1.240" L x 0.512" W (31.50mm x 13.00mm)
  • Operating Temperature: -40°C to 105°C
  • Packaging: Bulk of 234
