Same model may have multiple batches, images only for reference.

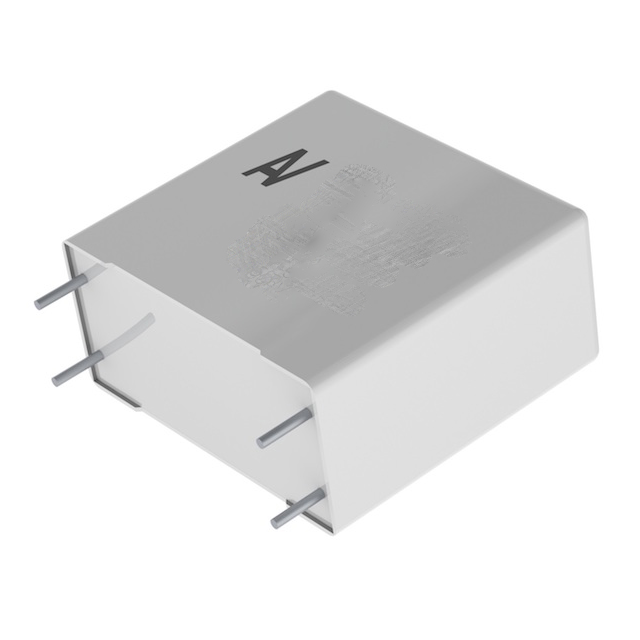

C4AEQBW5100A3JJ Real Image
Same model may have multiple batches, images only for reference.

C4AEQBW5100A3JJ

Part No C4AEQBW5100A3JJ
Manufacturer Kemet
Catalog Film Capacitors
Description Cap Film 10uF 1100V PP 5% (42 X 28 X 37mm) Plastic Rectangular Can 37.5mm 0.0063 Ohm 105C Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 10 µF
Case / Package Radial
Depth 28 mm
Dielectric PP
Dielectric Material Polypropylene
Height 37 mm
Lead Diameter 1.2 mm
Lead Pitch 37.5 mm
Length 42.5 mm
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Through Hole
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination PC Pin
Tolerance 5 %
Voltage Rating 1.1 kV
Voltage Rating (AC) 1.1 kV
Voltage Rating (DC) 1.1 kV
Win Source Part Number 1172998-C4AEQBW5100A3JJ
Categories Film Capacitors
Manufacturer Kemet
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C4AEQBW5100A3JJ CAD Model

Description

The Kemet 1172998-C4AEQBW5100A3JJ is a radial film capacitor with a capacitance of 10 µF and a voltage rating of 1.1 kV.

  • Dielectric Material: Polypropylene
  • Tolerance: 5%
  • Length: 42.5 mm
  • Height: 37 mm
  • Depth: 28 mm
  • Termination: PC Pin
  • Mounting: Through-Hole
  • RoHS: Compliant
  • Supply and Demand Status: Limited
  • Commonly Used in: Applications that require film capacitors
