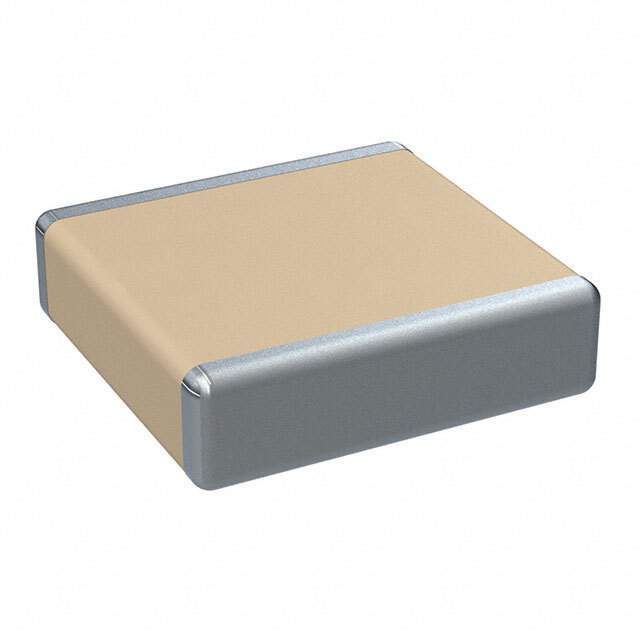

C2225C103KGRAC7800 Real Image1 C2225C103KGRAC7800 Real Image2
Same model may have multiple batches, images only for reference.
C2225C103KGRAC7800 Real Image1 C2225C103KGRAC7800 Real Image2
C2225C103KGRAC7800 Real Image1 C2225C103KGRAC7800 Real Image2
Same model may have multiple batches, images only for reference.

C2225C103KGRAC7800

Part No C2225C103KGRAC7800
Manufacturer Kemet
Catalog Ceramic Capacitors
Description CAP CER 10000PF 2KV X7R 2225 / 10000 pF ±10% 2000V (2kV) Ceramic Capacitor X7R 2225 (5763 Metric)
Datasheet
C2225C103KGRAC7800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Kemet
Series SMD Comm X7R HV
Package Tape & Reel
Capacitance 10000 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL, High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 2225 (5763 Metric)
Size / Dimension 0.220" L x 0.252" W (5.60mm x 6.40mm)
Height - Seated (Max) -
Thickness (Max) 0.071" (1.80mm)
Lead Spacing -
Lead Style -
Base Product Number C2225C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 1,000 pcs
Win Source Part Number 1381713-C2225C103KGRAC7800
Ultra Librarian 3D Model Ultra Librarian C2225C103KGRAC7800 CAD Model

Description

The 1381713-C2225C103KGRAC7800 is a ceramic capacitor from the SMD Comm X7R HV series.

  • Manufacturer: Kemet
  • Series: SMD Comm X7R HV
  • Features: Low ESL, High Voltage
  • Application: General Purpose
  • Capacitance: 10000 pF
  • Voltage Rating: 2000V (2kV)
  • Temperature Coefficient: X7R
  • Operating Temperature: -55°C to 125°C
  • Size / Dimension: 2225 (5763 Metric), 0.220" L x 0.252" W (5.60mm x 6.40mm)
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Standard Package: 1,000 pcs
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
