Same model may have multiple batches, images only for reference.

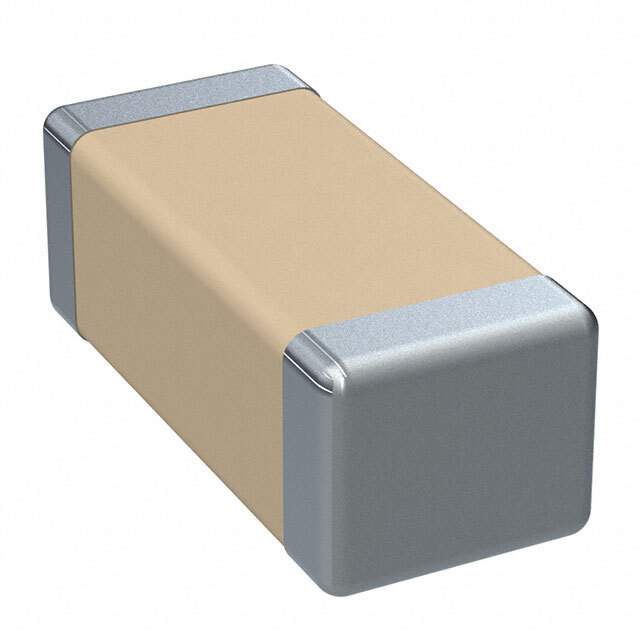

C1206C101JDGAC7800 Real Image
Same model may have multiple batches, images only for reference.

C1206C101JDGAC7800

Part No C1206C101JDGAC7800
Manufacturer Kemet
Catalog Ceramic Capacitors
Datasheet
C1206C101JDGAC7800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KEMET
Series SMD Comm C0G HV
Package Tape & Reel
Capacitance 100 pF
Tolerance ±5%
Voltage - Rated 1000V (1kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL, High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.053" (1.35mm)
Base Product Number C1206C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1315735-C1206C101JDGAC7800
Ultra Librarian 3D Model Ultra Librarian C1206C101JDGAC7800 CAD Model

Description

The Kemet 1315735-C1206C101JDGAC7800 is a ceramic capacitor with a capacitance of 100 pF and a voltage rating of 1000V (1kV).

  • Capacitance: 100 pF
  • Voltage Rating: 1000V (1kV)
  • Features: Low ESL, High Voltage
  • Application: General Purpose
  • Temperature Coefficient: C0G, NP0
  • Thickness: 0.053" (1.35mm)
  • Mounting Type: Surface Mount
  • Package/Case: 1206 (3216 Metric)
  • Operating Temperature: -55°C ~ 125°C
  • Manufacturer: Kemet
