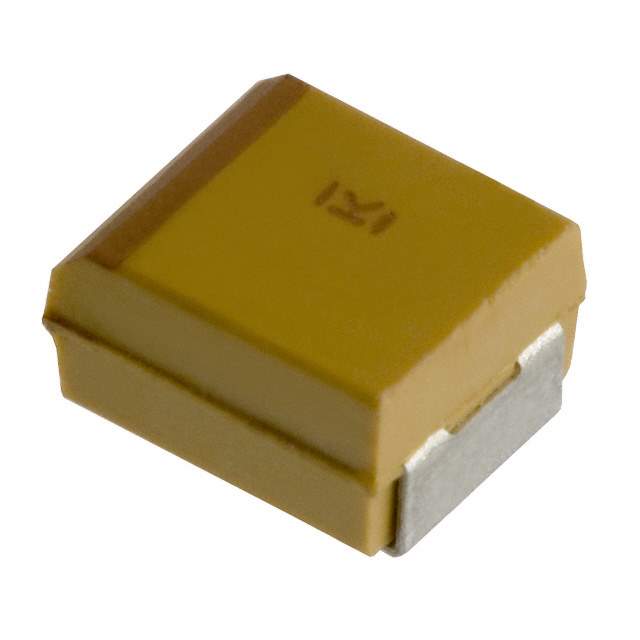

B45196H3226M209 Real Image
Same model may have multiple batches, images only for reference.

B45196H3226M209

Part No B45196H3226M209
Manufacturer Kemet
Catalog Custom Parts (B - D)
Description Capacitor; Tantalum; Cap 22uF; Tol 20%; SMT; Vol-Rtg 16V; Cut Tape
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 22 µF
Case / Package Molded
Depth 2.8 mm
Dissipation Factor 6 %
ESR (Equivalent Series Resistance) 2.2 Ω
Height 1.9 mm
Lead Free Lead Free
Length 3.5 mm
Max Operating Temperature 125 °C
Min Operating Temperature -55 °C
Packaging Cut Tape
Polarity Polar
RoHS Compliant
Termination SMD/SMT
Tolerance 20 %
Voltage Rating 16 V
Voltage Rating (DC) 16 V
Width 2.8 mm
Win Source Part Number 1211641-B45196H3226M209
Categories Custom Parts
Manufacturer Kemet
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B45196H3226M209 CAD Model

Description

The Kemet 1211641-B45196H3226M209 is a Custom Part from Kemet.

  • Type: Molded Capacitor
  • Capacitance: 22 µF
  • Voltage Rating: 16V
  • Tolerance: 20%
  • Polarity: Polar
  • ESR: 2.2 Ω
  • Dissipation Factor: 6%
  • Length: 3.5mm
  • Height: 1.9mm
  • Width: 2.8mm
  • Packaging: Cut Tape
  • Popularity: Medium
  • Lead-Free: Yes
  • RoHS Compliant: Yes
