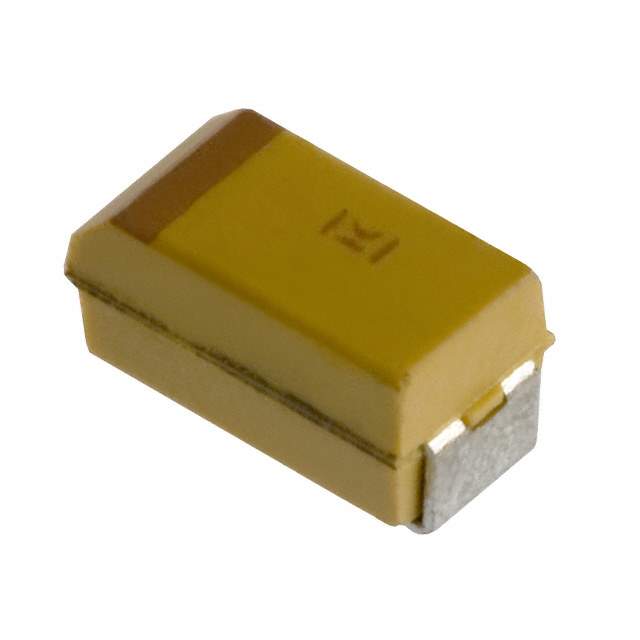

B45196H3106M109 Real Image
Same model may have multiple batches, images only for reference.

B45196H3106M109

Part No B45196H3106M109
Manufacturer Kemet
Catalog Tantalum Capacitors
Description Cap Tant 10UF 16V 20% 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 10 µF
Mounting SMD (SMT)
Case / Package 1206
Case Code (Imperial) 1206
Case / Package 3216
Dissipation Factor 6 %
Height 1.8 mm
Lead Free Yes
Leakage Current 1.6 µA
Length 3.2 mm
Maximum Operating Temperature 125 °C
Min Operating Temperature -55 °C
Packaging Cut Tape
RoHS Compliant
Termination SMD/SMT
Tolerance 20 %
Voltage Rating 16 V
Voltage Rating (DC) 16 V
Win Source Part Number 985763-B45196H3106M109
Categories Tantalum Capacitors
Manufacturer Kemet
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B45196H3106M109 CAD Model

Description

The Kemet 985763-B45196H3106M109 is a tantalum capacitor with a capacitance of 10 µF and a tolerance of 20%.

  • Capacitance: 10 µF
  • Tolerance: 20%
  • Length: 3.2 mm
  • Height: 1.8 mm
  • Width: 1.6 mm
  • Mounting Type: Surface Mount (SMD/SMT)
  • Case/Package: 3216/1206
  • Voltage Rating: 16 V
  • Lead-Free: Yes
  • RoHS: Compliant
  • Dissipation Factor: 6%
  • Maximum Operating Temperature: 125 °C
  • Alternative Part: GRM155R71H102JA01J
