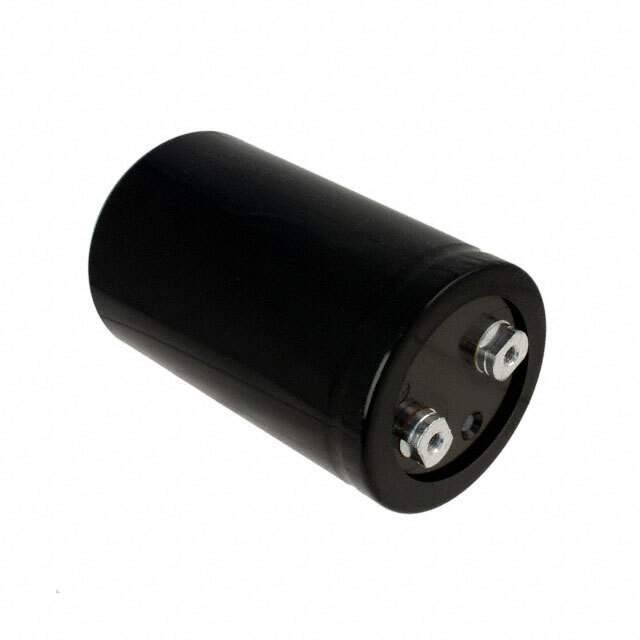

Same model may have multiple batches, images only for reference.

ALS30A222MF400

Name: ALS30A222MF400
Brand: Kemet
SKU: 1085510
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ALS30A222MF400
Manufacturer	Kemet
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 400V SCREW / 2200 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 62mOhm @ 100Hz 19000 Hrs @ 85°C
Datasheet	ALS30A222MF400 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	KEMET
Series	ALS30
Package	Bulk
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	400 V
ESR (Equivalent Series Resistance)	62mOhm @ 100Hz
Lifetime @ Temp.	19000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	11.2 A @ 100 Hz
Ripple Current @ High Frequency	18.8 A @ 10 kHz
Impedance	44 mOhms
Lead Spacing	1.122" (28.50mm)
Dimension	2.598" Dia (66.00mm)
Height - Seated (Max)	4.213" (107.00mm)
Mounting Type	Chassis Mount
Package / Case	Radial, Can - Screw Terminals
Base Product Number	ALS30A
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0085
Other Names	A331PM222M400A,399-5632
Standard Package	16
Win Source Part Number	1085510-ALS30A222MF400
Ultra Librarian 3D Model	Ultra Librarian ALS30A222MF400 CAD Model

Description

The ALS30 series capacitors are aluminum electrolytic capacitors with a radial, can-screw terminal package.

Capacitance: 2200 µF with a tolerance of ±20%
Voltage Rating: 400 V
Lead Spacing: 1.122" (28.50mm)
Height (ALS30A222MF400): 4.213" (107.00mm)
Diameter (ALS30A222MF400): 2.598" (66.00mm)
Impedance: 44 mOhms
ESR: 62mOhm @ 100Hz
Temperature Range: -40°C to 85°C
Lifetime: 19000 Hrs @ 85°C
