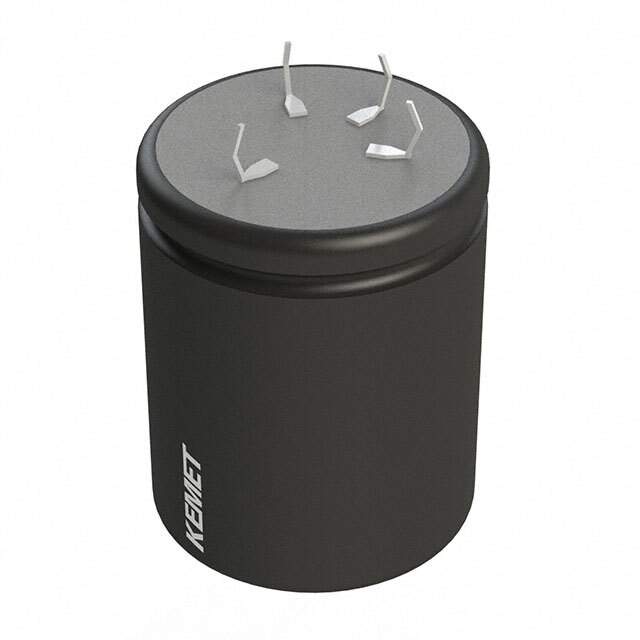

ALC80C821EL500 Real Image
Same model may have multiple batches, images only for reference.

ALC80C821EL500

Part No ALC80C821EL500
Manufacturer Kemet
Catalog Aluminum Capacitors
Description CAP ALUM 820UF 20% 500V SNAP / 820 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 215mOhm @ 100Hz 9000 Hrs @ 105°C
Datasheet
ALC80C821EL500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr KEMET
Series ALC80
Package Bulk
Capacitance 820 µF
Tolerance ±20%
Voltage - Rated 500 V
ESR (Equivalent Series Resistance) 215mOhm @ 100Hz
Lifetime @ Temp. 9000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 4.39 A @ 100 Hz
Ripple Current @ High Frequency 9.86 A @ 10 kHz
Impedance 150 mOhms
Lead Spacing 0.886" (22.50mm)
Dimension 1.575" Dia (40.00mm)
Height - Seated (Max) 3.228" (82.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In - 4 Lead
Base Product Number ALC80C
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0055
Standard Package 36
Win Source Part Number 1021594-ALC80C821EL500
Ultra Librarian 3D Model Ultra Librarian ALC80C821EL500 CAD Model

Description

The ALC80C821EL500 is an aluminum electrolytic capacitor that is part of the ALC80 series.

  • Series: ALC80
  • Part: ALC80C821EL500
  • Capacitance: 820 µF
  • Voltage Rating: 500 V
  • Design: Polarized
  • Mounting Type: Through-hole
  • Application: General-purpose electronics
  • Features: Long lifespan and a low ESR
