Same model may have multiple batches, images only for reference.

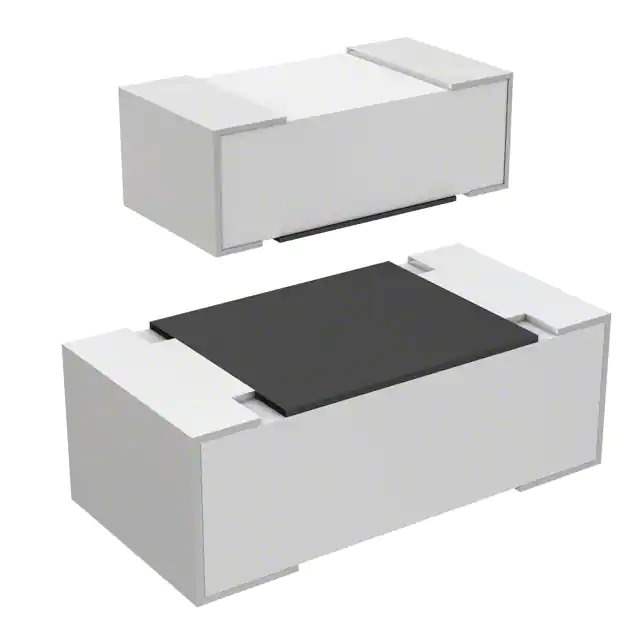

RMC1/32-100JPA Real Image
Same model may have multiple batches, images only for reference.

RMC1/32-100JPA

Part No RMC1/32-100JPA
Manufacturer Kamaya Inc.
Catalog Chip Resistor - Surface Mount
Description RES 10 OHM 5% 1/32W 01005
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Kamaya Inc.
Series RMC
Package Tape & Reel
Product Status Active
Resistance 10 Ohms
Tolerance ±5%
Power (Watts) 0.03W, 1/32W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 01005 (0402 Metric)
Supplier Device Package 1005
Size / Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max) 0.006" (0.15mm)
Number of Terminations 2
Standard Package 20,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1114234-RMC1/32-100JPA
Ultra Librarian 3D Model Ultra Librarian RMC1/32-100JPA CAD Model

Description

The 1114234-RMC1/32-100JPA is a chip resistor designed for surface mount applications from the RMC series manufactured by Kamaya Inc.

  • Series: RMC
  • Mounting: Surface Mount
  • Package: Tape and Reel
  • Size: 0.016" L x 0.008" W (0.40mm x 0.20mm)
  • Height: 0.006" (0.15mm)
  • Quantity per Package: 20,000 pieces
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Rating: 0.03W (1/32W)
  • Composition: Thick Film
  • Terminations: 2
  • Resistance: 10 Ohms
  • Package/Case: 01005 (0402 Metric)
  • Operating Temperature: -55°C to 125°C
  • Product Status: Active
