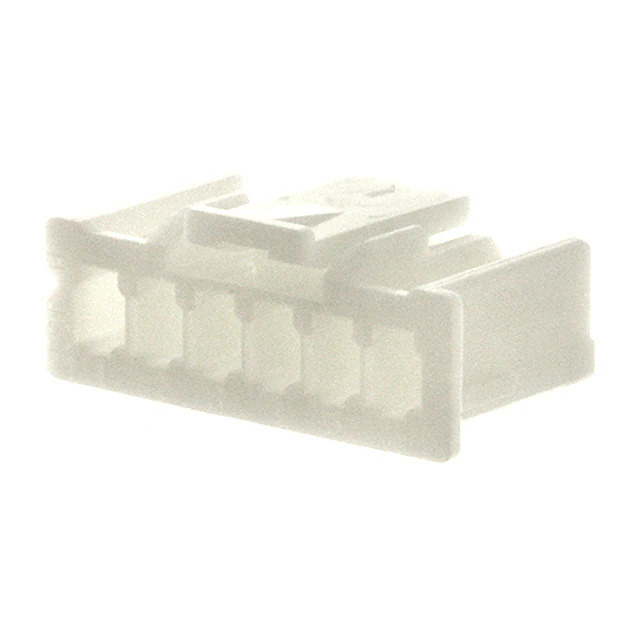

Same model may have multiple batches, images only for reference.

XARP-06V

Name: XARP-06V
Brand: JST Sales America Inc.
SKU: 1365219
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XARP-06V
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 6POS 2.50MM / 6 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	XA
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	6
Pitch	0.098" (2.50mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	XARP
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365219-XARP-06V
Ultra Librarian 3D Model	Ultra Librarian XARP-06V CAD Model

Alternative Products

Description

The XARP-06V is a rectangular connector housing manufactured by JST Sales America Inc.

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 6
Number of Rows: 1
Pitch: 0.098" (2.50mm)
Fastening Type: Latch Lock
Mounting Type: Free Hanging (In-Line)
Color: Natural
Operating Temperature: -25°C ~ 85°C
Contact Termination: Crimp
Contact Material: -
Contacts Included: No
Series: XA
Status: Active
Packaging: Bulk
