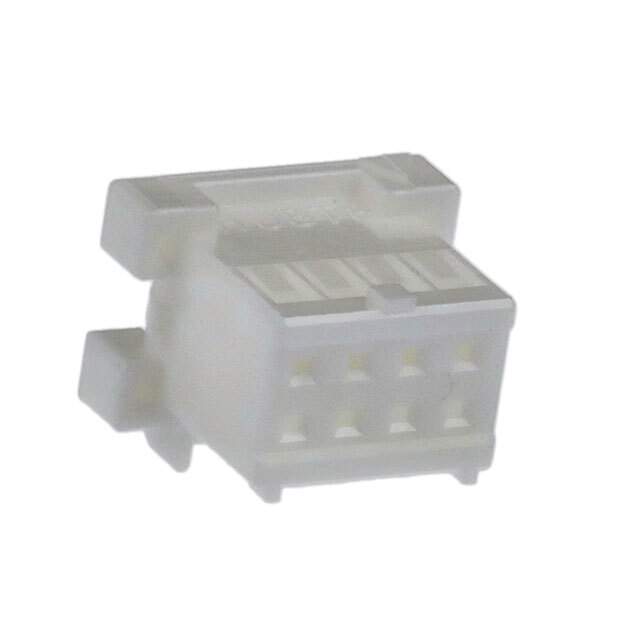

Same model may have multiple batches, images only for reference.

XADRP-08V

Name: XADRP-08V
Brand: JST Sales America Inc.
SKU: 1132314
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	XADRP-08V
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HOUSING XAD 8 POS DL 2.5MM / 8 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Housings
Mfr	JST Sales America Inc.
Series	XAD
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	8
Pitch	0.098" (2.50mm)
Number of Rows	2
Row Spacing	0.098" (2.50mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Note	Contacts Not Included
Base Product Number	XADR
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Other Names	XADRP-08V-ND,XADRP08V,455-2162
Standard Package	1,000
Win Source Part Number	1132314-XADRP-08V
Ultra Librarian 3D Model	Ultra Librarian XADRP-08V CAD Model

Alternative Products

Description

The JST Sales America Inc. 1132314-XADRP-08V is a rectangular connector housing designed for receptacle installation.

Positions: 8
Pitch: 0.098” (2.50mm)
Series: XAD
Packaging: Bulk
Pieces per Package: 1000
ECCN: EAR99
HTSUS: 8538.90.6000
Other Part Numbers: XADRP08V, 455-2162
