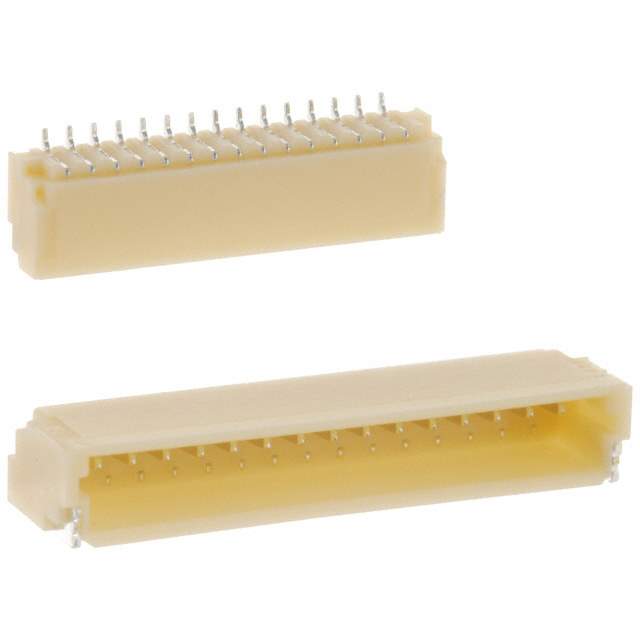

SM15B-SRSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM15B-SRSS-TB(LF)(SN)

Part No SM15B-SRSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADR SH 15POS SIDE 1MM TIN
Datasheet
SM15B-SRSS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 15
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.114" (2.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 0.7A
Voltage Rating 50V
Mated Stacking Heights 2.95mm
Win Source Part Number 116054-SM15B-SRSS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SM15B-SRSS-TB(LF)(SN) CAD Model

Description

The 116054-SM15B-SRSS-TB(LF)(SN) is a header connector manufactured by JST Sales America Inc.

  • GPTDescription: This product is packaged in a reel - TR and has 15 positions.
  • GPTDescription: The connector type is male pin, and the termination is solder.
  • GPTDescription: The voltage rating for this product is 50V, and the current rating is 0.7A.
  • GPTDescription: The supply and demand status is balanced.
