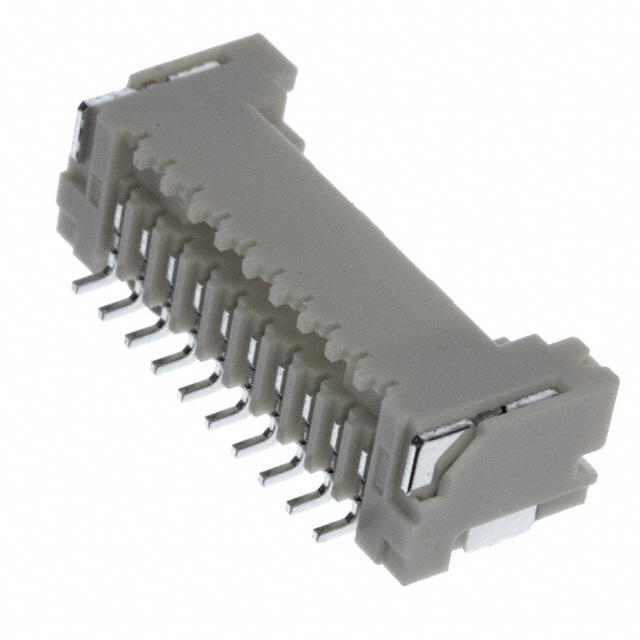

SM10B-ZESS-TB(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

SM10B-ZESS-TB(LF)(SN)

Part No SM10B-ZESS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A SMD 10POS ZE
Datasheet
SM10B-ZESS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series ZE
Packaging Reel - TR
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.228" (5.80mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 5.8mm
Win Source Part Number 749308-SM10B-ZESS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name SM
Introduction Date January 04, 2009
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SM10B-ZESS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 749308-SM10B-ZESS-TB(LF)(SN) is a 10 position header connector with an outer shroud contact type. The connector is supplied in a reel of 500 with a surface mount, right angle mounting style.

  • ECCN: EAR99 compliant
  • HTSUS: 8536.90.4000
  • Style Application: Suitable for board to cable/wire style applications
  • Pitch-Mating: 0.059" (1.50mm)
  • Design: Shrouded-4 wall design
