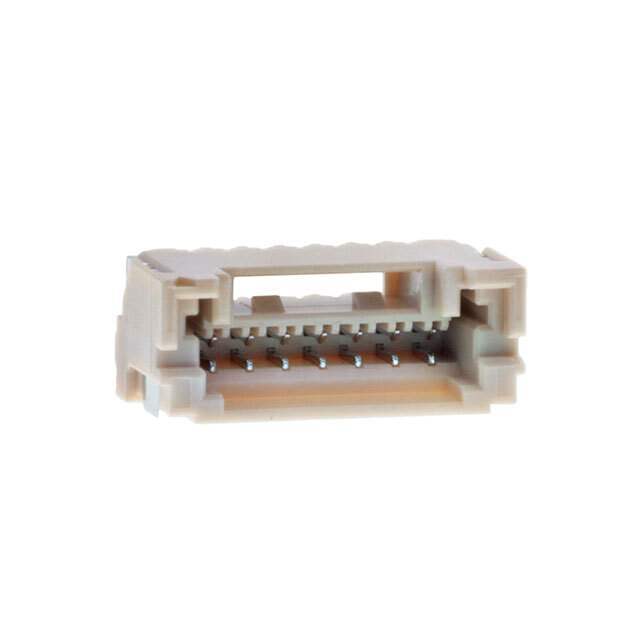

SM07B-ZESS-TB(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

SM07B-ZESS-TB(LF)(SN)

Part No SM07B-ZESS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 7POS 1.5MM
Datasheet
SM07B-ZESS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308049-SM07B-ZESS-TB(LF)(SN)
Category Connectors, Interconnects >Rectangular Connectors> Headers, Male Pins
Mfr JST Sales America Inc.
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Ultra Librarian 3D Model Ultra Librarian SM07B-ZESS-TB(LF)(SN) CAD Model

Description

This is a 1.5 mm pitch wire-to-board connector with a solid locking feature for high-density board design. Ease of mating is facilitated with a low insertion force and a positive tactile clicking sensation, providing a highly reliable connection.
